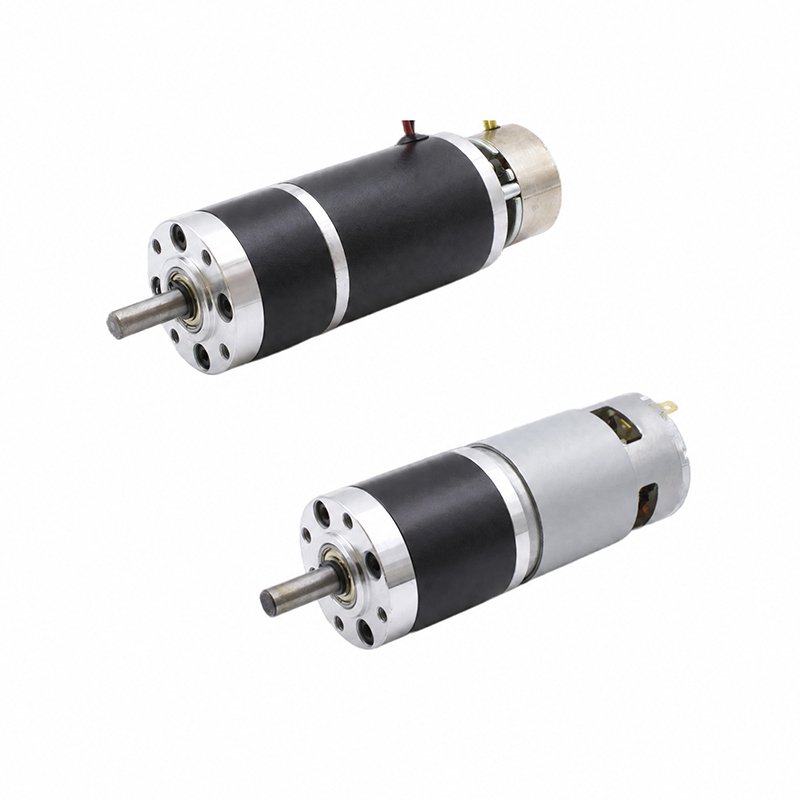

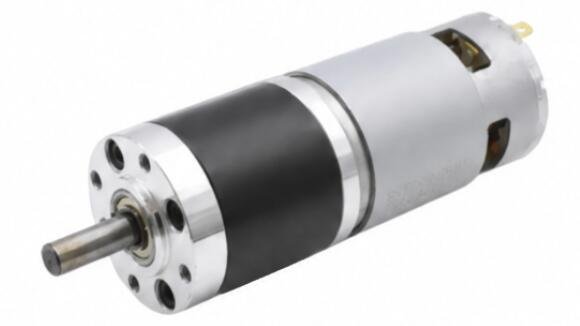

45JX775 Planetary Gear Motor

The 45JX775 planetary gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.

Product type: Planetary Gear Motor
Housing material: Zinc alloy
Nominal supply: 24 V

Request This Motor View Specifications View Applications

Confirm the full model code, selected drawing and operating requirements for your OEM order.

Specifications and Configuration References

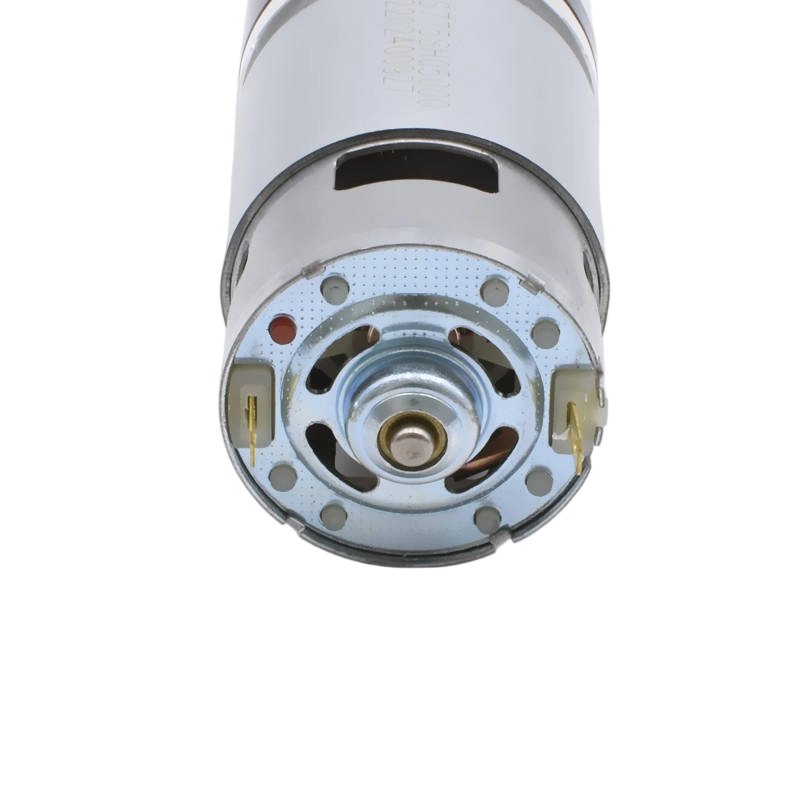

Construction and interface references

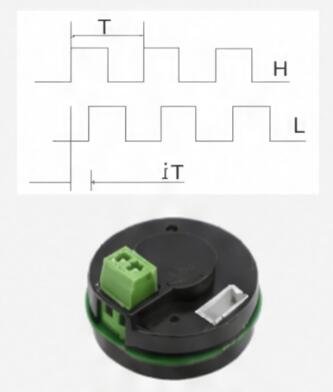

Housing material	Zinc alloy	Encoder Optional
Model	TJX45RT	A-B 2 channels 775Encoder-5V 13PPR
Bearing	Ball bearing
Gear Modulus	0.6M
Commutator	Brushed
Gear material	40Cr steel
Max pressure force on shaft	≤20kgf
Back lash	≤2°
Brake available	No
Gear construction	Planetary gear

Published ratio-specific configurations

DC MOTOR SPEED	Ratio	Gear Stages	Gearbox Size		Model Number	Voltage		No Load		On Load
DC MOTOR SPEED			Gearbox Size			Operating Range	Rated Voltage	Current	Speed	Current	Torque	Speed
RPM			Dia	L		Min-Max V	V	mA	RPM	mA	N.m	RPM
6500	3.7	1	45	29.7	TJX45RT3.7i-24V-1756.8R	6.0-36.0	24	420	1756.8	3000	0.29	1405.4
6500	5.2	1	45	29.7	TJX45RT5.2i-24V-1250R	6.0-36.0	24	420	1250	3000	0.4	1000
6500	13.7	2	45	39.4	TJX45RT13.7i-24V-474.5R	6.0-36.0	24	420	474.5	3000	0.95	379.6
6500	19.2	2	45	39.4	TJX45RT19.2i-24V-338.5R	6.0-36.0	24	420	338.5	3000	1.34	270.8
6500	26.9	2	45	39.4	TJX45RT26.9i-24V-241.6R	6.0-36.0	24	420	241.6	3000	1.87	193.3
6500	51	3	45	49.1	TJX45RT51i-24V-127.5R	6.0-36.0	24	420	127.5	3000	3.2	102
6500	71	3	45	49.1	TJX45RT71i-24V-91.5R	6.0-36.0	24	420	91.5	3000	4.45	73.2
6500	100	3	45	49.1	TJX45RT100i-24V-65R	6.0-36.0	24	420	65	3000	6.27	52
6500	139	3	45	49.1	TJX45RT139i-24V-46.8R	6.0-36.0	24	420	46.8	3000	8.71	37.4
6500	189	4	45	60.3	TJX45RT189i-24V-34.4R	6.0-36.0	24	420	34.4	3000	10.66	27.5
6500	264	4	45	60.3	TJX45RT264i-24V-24.6R	6.0-36.0	24	420	24.6	3000	12	19.7
6500	369	4	45	60.3	TJX45RT369i-24V-17.6R	6.0-36.0	24	420	17.6	3000	12	14.1
6500	512	4	45	60.3	TJX45RT512i-24V-12.7R	6.0-36.0	24	420	12.7	3000	12	10.2
6500	721	4	45	60.3	TJX45RT721i-24V-9R	6.0-36.0	24	420	9	3000	12	7.2
6500	699	5	45	71.5	TJX45RT699i-24V-9.3R	6.0-36.0	24	420	9.3	3000	12	7.4
6500	977	5	45	71.5	TJX45RT977i-24V-6.7R	6.0-36.0	24	420	6.7	3000	12	5.3
6500	1367	5	45	71.5	TJX45RT1367i-24V-4.8R	6.0-36.0	24	420	4.8	3000	12	3.8
6500	1911	5	45	71.5	TJX45RT1911i-24V-3.4R	6.0-36.0	24	420	3.4	3000	12	2.7
6500	2672	5	45	71.5	TJX45RT2672i-24V-2.4R	6.0-36.0	24	420	2.4	3000	12	1.9
6500	3736	5	45	71.5	TJX45RT3736i-24V-1.7R	6.0-36.0	24	420	1.7	3000	12	1.4

Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

Housing material: Zinc alloy
Model: TJX45RT
Bearing: Ball bearing
Gear Modulus: 0.6M
Commutator: Brushed
Gear material: 40Cr steel
Max pressure force on shaft: ≤20kgf
Back lash: ≤2°
Brake available: No
Gear construction: Planetary gear

Dimensions and Technical Drawings

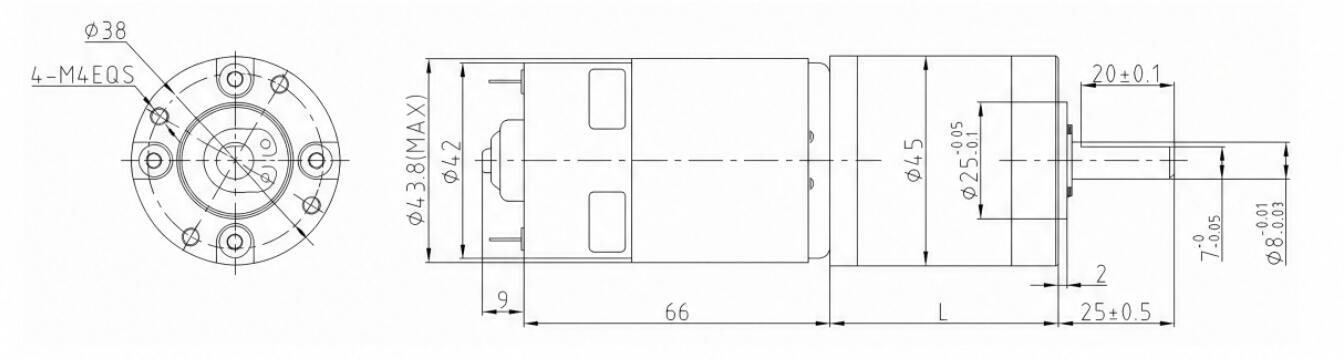

45JX775 45JX775 original technical reference 1 — 45JX775 original technical reference 1 · Open original image

45JX775 45JX775 original technical reference 2 — 45JX775 original technical reference 2 · Open original image

45JX775 45JX775 original technical reference 3 — 45JX775 original technical reference 3 · Open original image

Match the Configuration to Your Equipment

A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.

Output speed and loaded torque at the selected ratio
Duty cycle, starts, reversing and load direction
Shaft, mounting holes and gearbox length
System supply and complete configuration code

Custom Motor Development Quality and Validation

Questions from OEM buyers

How do I request an OEM quotation for 45JX775?

Send the complete assembly or configuration code, supply voltage, reduction ratio, loaded output speed and torque, duty cycle, mounting drawing and expected quantity. Include the output shaft and any required control interface.

Can I select this series by its name alone?

Use the complete assembly code, reduction ratio and matching drawing. A series can include different motor windings, gear ratios, shaft details and mounting arrangements; confirm the selected version and output working point.

What should be checked before a production order?

Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
