5775BL Brushless DC Motor
A 57 mm brushless DC motor family with three-phase and Hall connections for an external driver. The range includes two 24 V speed variants for comparison during project selection.
- Body size
- Ø57 × 75 mm
- Supply reference
- 24 V
- No-load variants
- 4000 / 5100 rpm
- Driver
- External, Hall feedback
OEM supply · Configuration-specific winding and mechanical interface
Published configuration table.
Published configuration table.
| Model | Rated supply V | No-load speed rpm | On-load speed rpm | On-load torque N.m | On-load current mA |
|---|---|---|---|---|---|
| 5775BL-24V-4000R | 24 | 4000 | 3200 | 0.233 | 4650 |
| 5775BL-24V-5100R | 24 | 5100 | 4080 | 0.216 | 5500 |
Select the winding and driver together; compare loaded speed and torque at the stated supply.
Performance and dimensions are subject to the selected winding, reduction ratio where applicable, drawing and agreed test conditions. Please confirm the current configuration with Hongyang before ordering.
External driver and Hall connections.
| Wire / interface | Function |
|---|---|
| Yellow phase | MA |
| Green phase | MB |
| Blue phase | MC |
| Black | GND |
| Yellow Hall | HA |
| Green Hall | HB |
| Blue Hall | HC |
| Red | VCC / source drawing 5 V |
Dimensions, curves and interfaces.

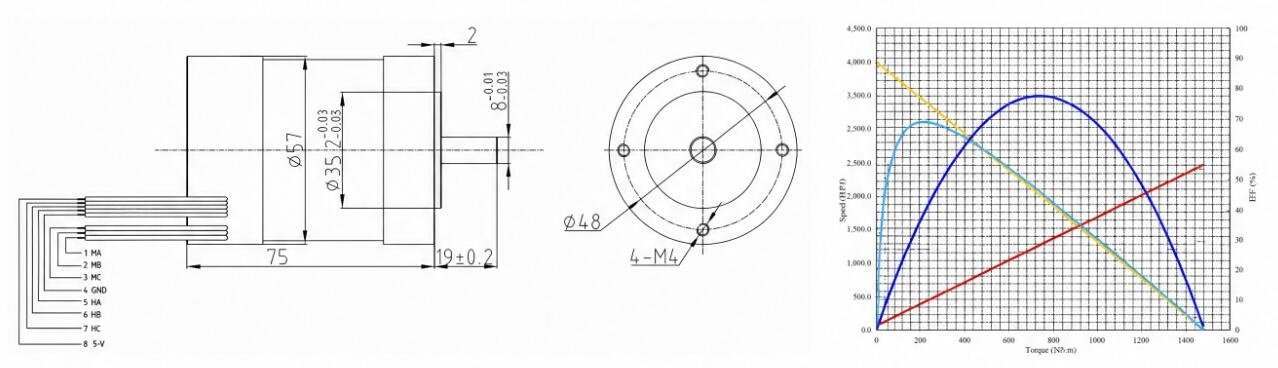

dimensions, Hall wiring and performance curve
External driver connection reference
The selected drawing controls shaft, mounting and tolerance details. Any lettered dimensions without a value are specified for the chosen build.
External driver and Hall connections.
The 5775BL uses three motor phases and Hall connections. Match the driver supply, phase current, Hall sequence and control signals to the selected motor.
The pictured driver is an integration reference. Confirm whether a driver is included in the quoted assembly.
Fit the motor to your assembly.
57 mm motor platform with Hall feedback for an external driver. Use an existing configuration as the starting point, then review the interfaces that connect it to your equipment.
Shaft and mounting arrangement
Use the installation drawing to define the shaft and fixing arrangement.
External driver matching
Review supply, current limits and control signals as a system.
Hall feedback and control interface
Agree feedback format, wiring and connector details for the chosen build.
Evaluate the motor in the real mechanism.
Supply and working point
Use the intended system voltage and the required speed and torque under load.
Mounting and shaft
Check the shaft profile, projection, fit and fastener positions against your assembly.
Thermal and duty conditions
Evaluate the motor in the intended enclosure and operating cycle.
System acceptance
Agree current, speed, direction and any feedback checks before sample approval.
Create a clear approval baseline.
Technical inquiry
Send this series name, the full variant if selected, the installation drawing and required working point.
Sample evaluation
Check fit and performance in your equipment. Record the supply, load, duty and test method.
Production approval
Agree the drawing revision, model code, acceptance requirements and order quantity before release.
