GB-2228 DC Diaphragm Pump
The GB-2228 is a DC diaphragm water pump for OEM fluid-handling equipment. The two threaded-outlet arrangements and source specifications support a configuration review; confirm the installation and pressure requirement for the selected pump. Available references are retained below; request the datasheet and approved drawing for the selected configuration, including the items marked for confirmation, before sampling or ordering.
- Product type
- DC Diaphragm Pump
- Rated Voltage
- 12V DC
- Max Flow Rate
- 2.6 L/min
- Nominal supply
- 12 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Mechanical drawing shown. Request current product photography and the selected outlet configuration with your inquiry.
Configuration details to confirm
Specifications and Configuration References
Details to Confirm Before Selection
| Detail | Status and required confirmation |
|---|---|
| Operating and shut-off pressure | To be confirmed. Source pressure values conflict. Confirm pressure limits together with flow, current and the selected outlet configuration. |
| Current product photography | To be confirmed. Mechanical drawings are shown while the original nameplate photographs remain under review. |
Dual-threaded outlet specifications (source reference)
| Item | Parameter |
| Model | GB-2228 |
| Rated Voltage | 12V DC |
| Max Current | 2A |
| Max Flow Rate | 2.6 L/min |
| Connection Type | Double-sided threaded interface |
| Working Medium | Clean water and non-corrosive liquids |
| Drive Type | Diaphragm reciprocating |
Published GB-2228 reference configuration
| Model | Voltage | Power | Max Current | Open Flow Rate | Suction Head | Head (Lift) |
| GB-2228 | 12V | 25W | 2.0A | 2.6L/min | 1.2m | 30-70m |

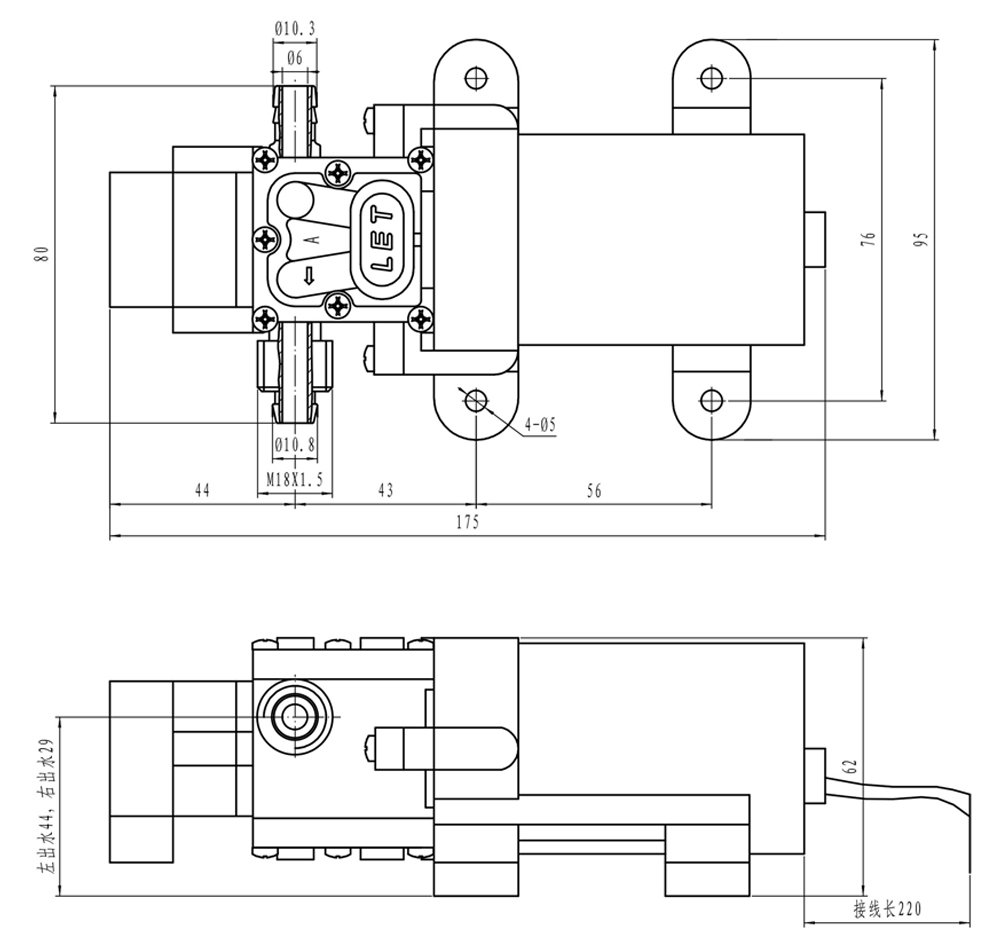

Single-threaded, right-side outlet specifications (source reference)
| Item | Parameter |
| Model | GB-2228 |
| Rated Voltage | 12V DC |
| Max Current | 2A |
| Max Flow Rate | 2.6 L/min |
| Connection Type | Single-side threaded port, right-side outlet |
| Working Medium | Clean water and non-corrosive liquids |
| Drive Type | Diaphragm reciprocating |
Data is configuration-specific. Confirm the selected outlet, supply voltage, fluid, flow and pressure conditions on the agreed pump datasheet before ordering.
- Model
- GB-2228
- Rated Voltage
- 12V DC
- Max Current
- 2A
- Max Flow Rate
- 2.6 L/min
- Working Medium
- Clean water and non-corrosive liquids
- Drive Type
- Diaphragm reciprocating
- Outlet arrangements
- Dual-threaded outlet or single-threaded port with right-side outlet; choose the source variant
Review the complete configuration and units. Outlet arrangement, fluid and operating conditions must be reviewed for the selected pump configuration.
Details to Confirm Before Selection
The available photographs and technical references are shown below. Confirm the following details for the selected configuration before sampling or ordering.
Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- System voltage and electrical limits
- Required flow and working/shut-off pressure
- Fluid, temperature and operating cycle
- Outlet threads, mounting and available space
Questions from OEM buyers
How do I request an OEM quotation for GB-2228?
Send the selected pump and outlet configuration, supply voltage, required flow and pressure, fluid, duty cycle, installation details and expected quantity. Confirm the applicable pump datasheet and connection arrangement for your equipment.
Can I select this series by its name alone?
Confirm the complete pump and outlet arrangement with its matching datasheet. The selected configuration, fluid, pressure, flow and operating conditions must be reviewed together before sample evaluation.
What should be checked before a production order?
Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
