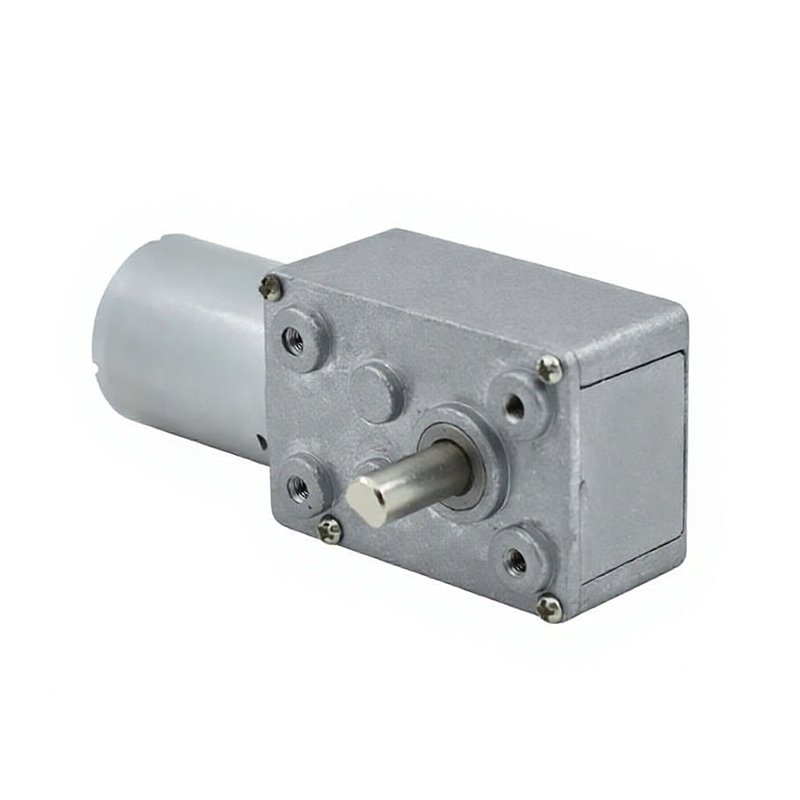

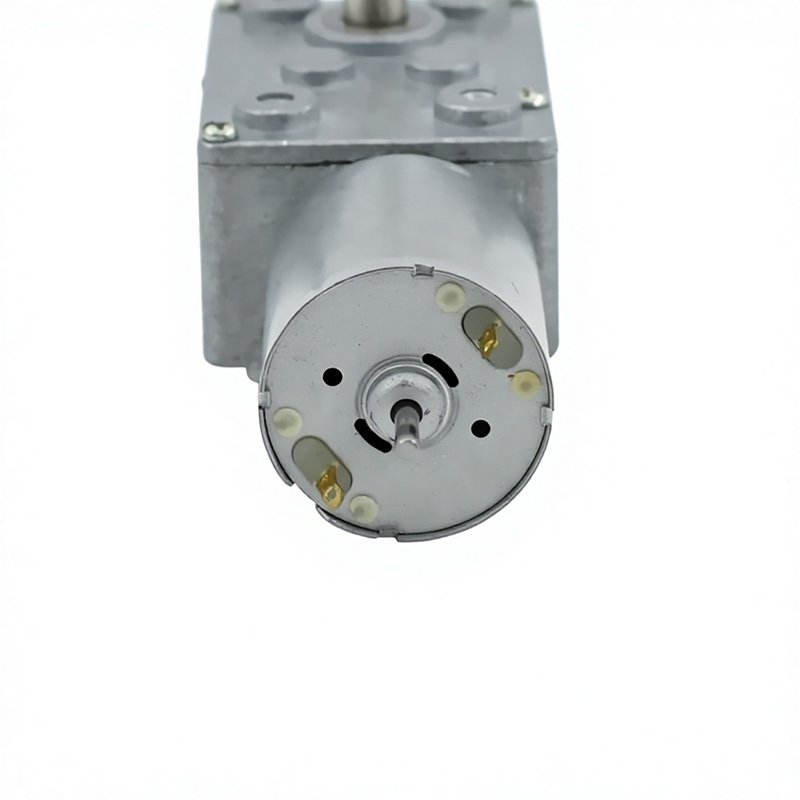

3246WG370 Worm Gear Motor

The 3246WG370 worm gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.

Product type: Worm Gear Motor
Housing material: Zinc alloy
Nominal supply: 12 V

Request This Motor View Specifications View Applications

Confirm the full model code, selected drawing and operating requirements for your OEM order.

Specifications and Configuration References

Construction and interface references

Housing material	Zinc alloy	Encoder Optional
Model	TJW46FA	A-B 2 channels 370Encoder-5V 12PPR
Bearing	Oil bearing
Gear Modulus	0.4M
Commutator	Brushed
Gear material	Sintered steel
Max pressure force on shaft	≤10kgf
Back lash	≤2°
Brake available	No
Gear construction	Worm gear

Published ratio-specific configurations

DC MOTOR SPEED	Ratio	Gear Stages	Gearbox Size		Model Number	Voltage		No Load		On Load
DC MOTOR SPEED			Gearbox Size			Operating Range	Rated Voltage	Current	Speed	Current	Torque	Speed
RPM			L	W		Min-Max V	V	mA	RPM	mA	N.m	RPM
6500	40	2	46	32	TJW46FA40i-12V-162.5R	3-18	12	30	162.5	125	0.06	130
6500	69	2	46	32	TJW46FA69i-12V-94.2R	3-18	12	30	94.2	125	0.1	75.4
6500	100	2	46	32	TJW46FA100i-12V-65R	3-18	12	30	65	125	0.15	52
6500	180	3	46	32	TJW46FA180i-12V-36.1R	3-18	12	30	36.1	125	0.23	28.9
6500	255	3	46	32	TJW46FA255i-12V-25.5R	3-18	12	30	25.5	125	0.33	20.4
6500	330	3	46	32	TJW46FA330i-12V-19.7R	3-18	12	30	19.7	125	0.43	15.8
6500	950	4	46	32	TJW46FA950i-12V-6.8R	3-18	12	30	6.8	125	1.12	5.5
6500	1170	4	46	32	TJW46FA1170i-12V-5.6R	3-18	12	30	5.6	125	1.37	4.4
6500	1450	5	46	32	TJW46FA1450i-12V-4.5R	3-18	12	30	4.5	125	1.53	3.6
6500	1650	6	46	32	TJW46FA1650i-12V-3.9R	3-18	12	30	3.9	125	1.57	3.2
6500	5300	6	46	32	TJW46FA5300i-12V-1.2R	3-18	12	30	1.2	125	2	1

Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

Housing material: Zinc alloy
Model: TJW46FA
Bearing: Oil bearing
Gear Modulus: 0.4M
Commutator: Brushed
Gear material: Sintered steel
Max pressure force on shaft: ≤10kgf
Back lash: ≤2°
Brake available: No
Gear construction: Worm gear

Dimensions and Technical Drawings

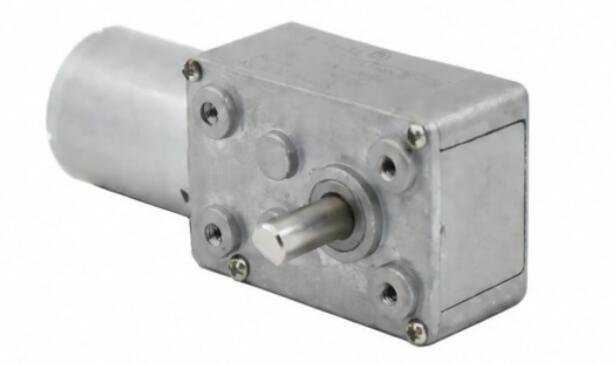

3246WG370 3246WG370 original technical reference 1 — 3246WG370 original technical reference 1 · Open original image

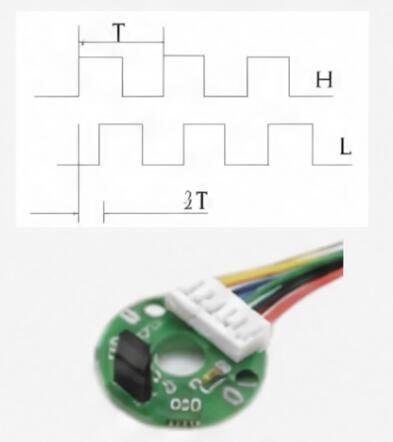

3246WG370 3246WG370 original technical reference 2 — 3246WG370 original technical reference 2 · Open original image

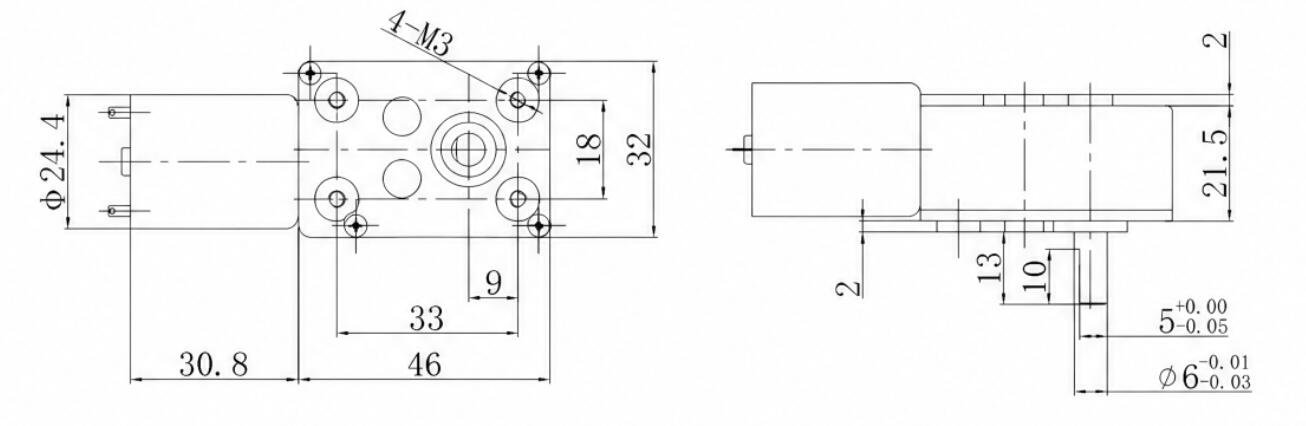

3246WG370 3246WG370 original technical reference 3 — 3246WG370 original technical reference 3 · Open original image
