TJZ17RU Spur Gear Motor
Review the TJZ17RU motor-and-gearbox reference for your equipment. Confirm the supply, ratio, load point and mounting interface together before requesting a sample. Available references are retained below; request the datasheet and approved drawing for the selected configuration, including the items marked for confirmation, before sampling or ordering.
- Product type
- Spur Gear Motor
- Rated voltage references
- 3 V
- Nominal supply
- 3 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Configuration details to confirm
Specifications and Configuration References
Details to Confirm Before Selection
| Detail | Status and required confirmation |
|---|---|
| Configuration detail | To be confirmed. Source label HRU17 to TJZ17RU mapping: TBC for the supplied part number. |
| Photograph and model | To be confirmed. The product photo shows a 12 V sample; the linked technical reference lists 3 V configurations. Confirm the requested winding and voltage. |
| Operating limits | To be confirmed. Selected gearbox ratio, rated output speed, rated torque and duty cycle: TBC for your equipment. |
| Drawing and dimensions | To be confirmed. Drawing revision, shaft and mounting interface: TBC before sampling. |
- Technical model reference
- TJZ17RU
- Gear construction
- Spur gear
- Commutation
- Brushed
- Rated voltage references
- 3 V
Details to Confirm Before Selection
The available photographs and technical references are shown below. Confirm the following details for the selected configuration before sampling or ordering.

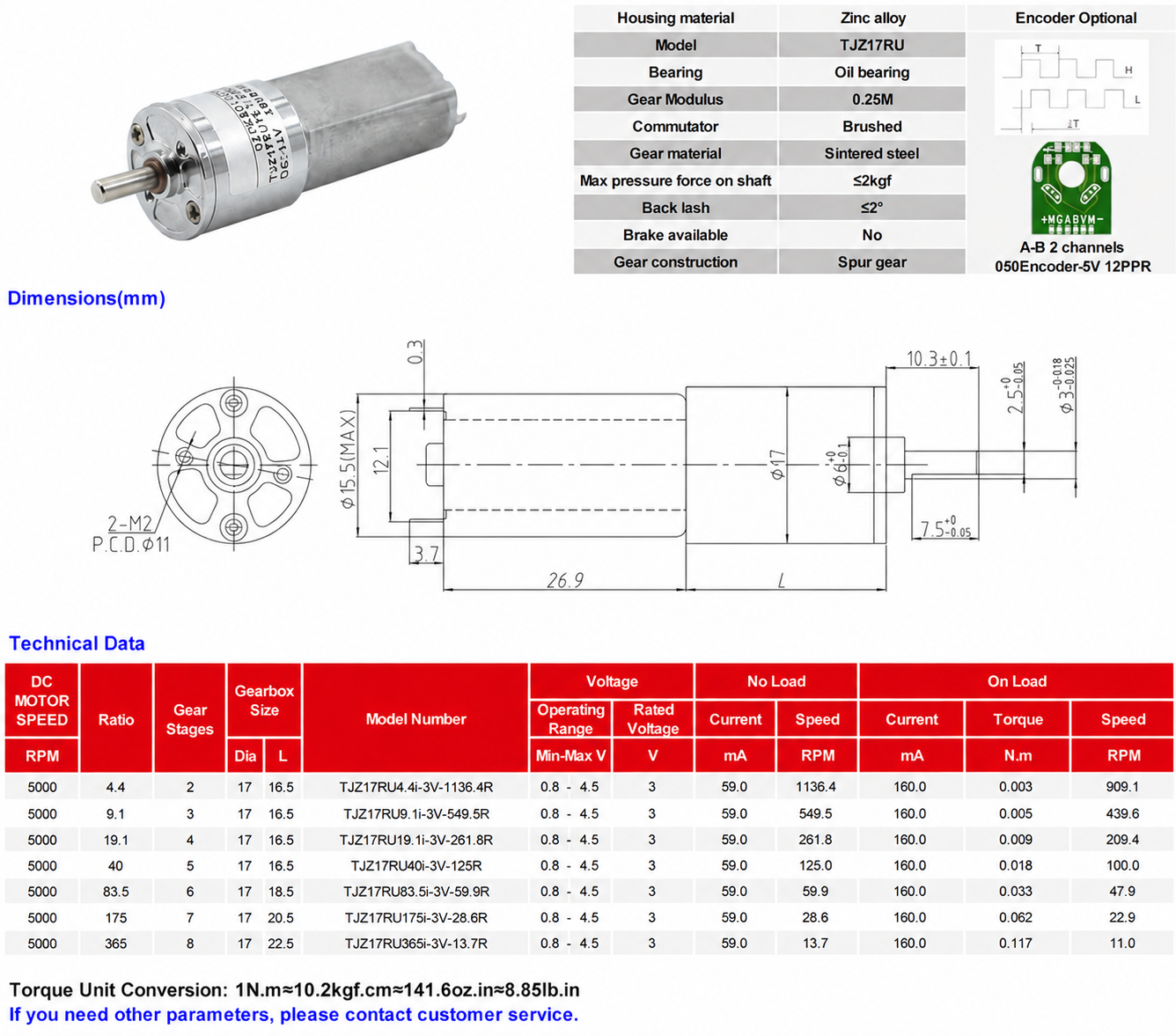

Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Output speed and loaded torque at the selected ratio
- Duty cycle, starts, reversing and load direction
- Shaft, mounting holes and gearbox length
- System supply and complete configuration code
Questions from OEM buyers
How do I request an OEM quotation for TJZ17RU?
Send the complete assembly or configuration code, supply voltage, reduction ratio, loaded output speed and torque, duty cycle, mounting drawing and expected quantity. Include the output shaft and any required control interface.
Can I select this series by its name alone?
Use the complete assembly code, reduction ratio and matching drawing. A series can include different motor windings, gear ratios, shaft details and mounting arrangements; confirm the selected version and output working point.
What should be checked before a production order?
Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
