60JX63126 Planetary Gear Motor

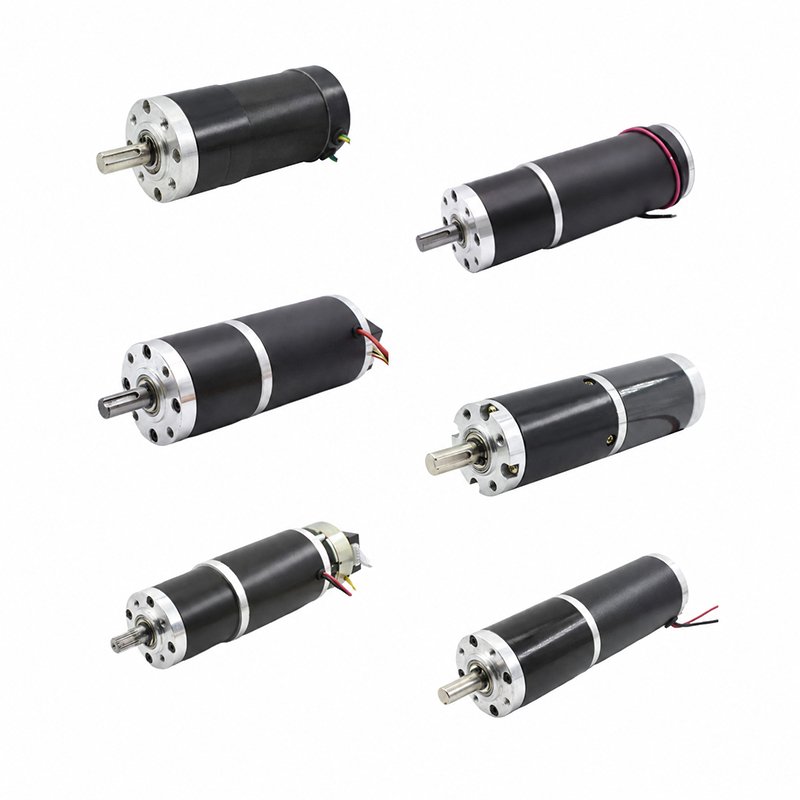

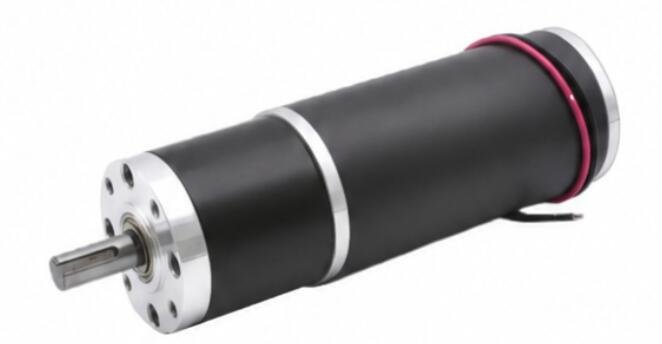

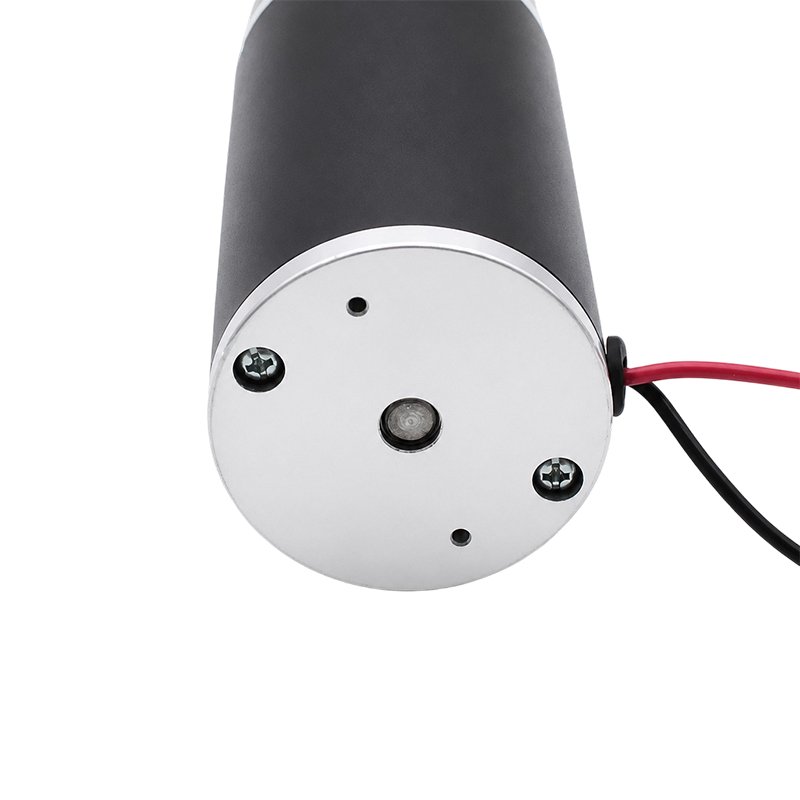

60JX63126 product angle 160JX63126 product angle 260JX63126 product angle 3

60JX63126 Planetary Gear Motor

The 60JX63126 planetary gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.

Product type
Planetary Gear Motor
Housing material
Zinc alloy
Nominal supply
24 V
Request This MotorView Specifications

Confirm the full model code, selected drawing and operating requirements for your OEM order.

Specifications and Configuration References

Construction and interface references

  Housing material Zinc alloy Encoder Optional
Model TJX60R63126S

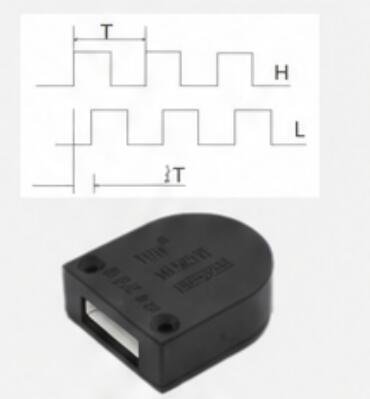

A-B 2 channels
D-Shape Encoder-5V 13PPR
Bearing Ball bearing
Gear Modulus 0.8M
Commutator Brushed
Gear material 40Cr steel
Max pressure force on shaft ≤30kgf
Back lash ≤2°
Brake available Yes
Gear construction Planetary gear

Published ratio-specific configurations

DC MOTOR SPEED Ratio Gear Stages Gearbox Size Model Number Voltage No Load On Load
Operating Range Rated Voltage Current Speed Current Torque Speed
RPM Dia L Min-Max V V mA RPM mA N.m RPM
8000 3.7 1 60 30.8 TJX60R63126S3.7i-24V-2162.2R 6.0-36.0 24 1500 2162.2 8000 0.62 1729.7
8000 5.2 1 60 30.8 TJX60R63126S5.2i-24V-1538.5R 6.0-36.0 24 1500 1538.5 8000 0.87 1230.8
8000 13.7 2 60 44 TJX60R63126S13.7i-24V-583.9R 6.0-36.0 24 1500 583.9 8000 2.07 467.2
8000 19.2 2 60 44 TJX60R63126S19.2i-24V-416.7R 6.0-36.0 24 1500 416.7 8000 2.9 333.3
8000 26.9 2 60 44 TJX60R63126S26.9i-24V-297.4R 6.0-36.0 24 1500 297.4 8000 4.06 237.9
8000 51 3 60 57.5 TJX60R63126S51i-24V-156.9R 6.0-36.0 24 1500 156.9 8000 6.92 125.5
8000 71 3 60 57.5 TJX60R63126S71i-24V-112.7R 6.0-36.0 24 1500 112.7 8000 9.64 90.1
8000 100 3 60 57.5 TJX60R63126S100i-24V-80R 6.0-36.0 24 1500 80 8000 13.58 64
8000 139 3 60 57.5 TJX60R63126S139i-24V-57.6R 6.0-36.0 24 1500 57.6 8000 18.87 46
8000 189 4 60 72.5 TJX60R63126S189i-24V-42.3R 6.0-36.0 24 1500 42.3 8000 20 33.9
8000 264 4 60 72.5 TJX60R63126S264i-24V-30.3R 6.0-36.0 24 1500 30.3 8000 20 24.2
8000 369 4 60 72.5 TJX60R63126S369i-24V-21.7R 6.0-36.0 24 1500 21.7 8000 20 17.3
8000 512 4 60 72.5 TJX60R63126S512i-24V-15.6R 6.0-36.0 24 1500 15.6 8000 20 12.5
8000 721 4 60 72.5 TJX60R63126S721i-24V-11.1R 6.0-36.0 24 1500 11.1 8000 20 8.9
8000 699 5 60 87.5 TJX60R63126S699i-24V-11.4R 6.0-36.0 24 1500 11.4 8000 20 9.2
8000 977 5 60 87.5 TJX60R63126S977i-24V-8.2R 6.0-36.0 24 1500 8.2 8000 20 6.6
8000 1367 5 60 87.5 TJX60R63126S1367i-24V-5.9R 6.0-36.0 24 1500 5.9 8000 20 4.7
8000 1911 5 60 87.5 TJX60R63126S1911i-24V-4.2R 6.0-36.0 24 1500 4.2 8000 20 3.3
8000 2672 5 60 87.5 TJX60R63126S2672i-24V-3R 6.0-36.0 24 1500 3 8000 20 2.4
8000 3736 5 60 87.5 TJX60R63126S3736i-24V-2.1R 6.0-36.0 24 1500 2.1 8000 20 1.7

Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

Housing material
Zinc alloy
Model
TJX60R63126S
Bearing
Ball bearing
Gear Modulus
0.8M
Commutator
Brushed
Gear material
40Cr steel
Max pressure force on shaft
≤30kgf
Back lash
≤2°
Brake available
Yes
Gear construction
Planetary gear

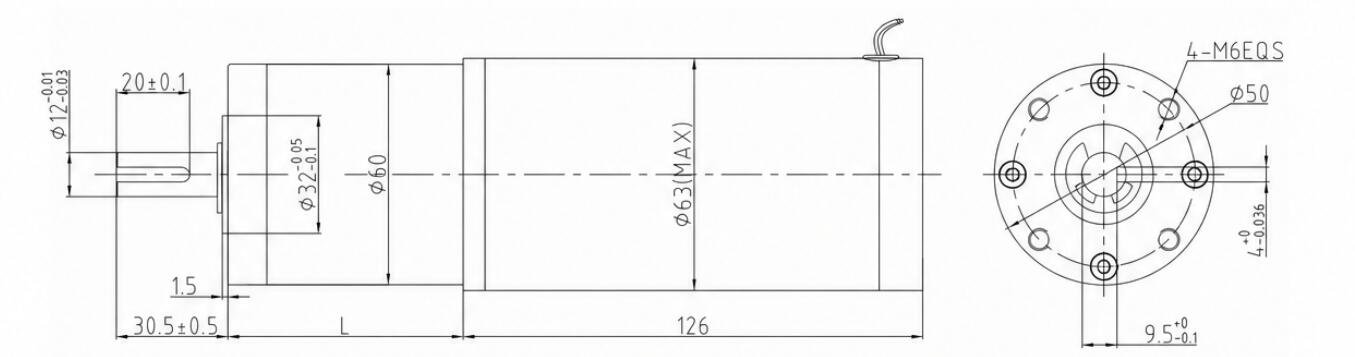

Dimensions and Technical Drawings

60JX63126 60JX63126 original technical reference 1
60JX63126 original technical reference 1 · Open original image
60JX63126 60JX63126 original technical reference 2
60JX63126 original technical reference 2 · Open original image
60JX63126 60JX63126 original technical reference 3
60JX63126 original technical reference 3 · Open original image

Match the Configuration to Your Equipment

A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.

  • Output speed and loaded torque at the selected ratio
  • Duty cycle, starts, reversing and load direction
  • Shaft, mounting holes and gearbox length
  • System supply and complete configuration code
Custom Motor DevelopmentQuality and Validation
Hongyang motor manufacturing equipment

Questions from OEM buyers

How do I request an OEM quotation for 60JX63126?

Send the complete assembly or configuration code, supply voltage, reduction ratio, loaded output speed and torque, duty cycle, mounting drawing and expected quantity. Include the output shaft and any required control interface.

Can I select this series by its name alone?

Use the complete assembly code, reduction ratio and matching drawing. A series can include different motor windings, gear ratios, shaft details and mounting arrangements; confirm the selected version and output working point.

What should be checked before a production order?

Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
