60GA50S Spur Gear Motor

The 60GA50S spur gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.

Product type: Spur Gear Motor
Housing material: Zinc alloy
Nominal supply: 24 V

Request This Motor View Specifications View Applications

Confirm the full model code, selected drawing and operating requirements for your OEM order.

Specifications and Configuration References

Construction and interface references

Housing material	Zinc alloy	Encoder Optional

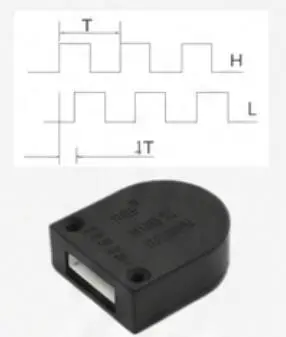

Model	TJZ60FR	A-B 2 channels D-Shape Encoder-5V 13PPR
Bearing	Ball bearing
Gear Modulus	1.25M
Commutator	Brushed
Gear material	40Cr steel
Max pressure force on shaft	≤20kgf
Back lash	≤2°
Brake available	Yes
Gear construction	Spur gear

Published ratio-specific configurations

DC MOTOR SPEED (RPM)	Ratio	Gear Stages	Gearbox Size		Model Number	Voltage			No Load		On Load
DC MOTOR SPEED (RPM)	Ratio	Gear Stages	Dia	L	Model Number	Operating Range (Min-Max V)		Rated Voltage (V)	Current (mA)	Speed (RPM)	Current (mA)	Torque (N.m)	Speed (RPM)
6000	6.8	2	60	28.5	TJZ60FR6.8i-24V-882.4R	6	36	24	1050	882.4	5500	0.94	705.9
6000	7.9	2	60	28.5	TJZ60FR7.9i-24V-759.5R	6	36	24	1050	759.5	5500	1.09	607.6
6000	9.8	2	60	28.5	TJZ60FR9.8i-24V-612.2R	6	36	24	1050	612.2	5500	1.36	489.8
6000	10.5	2	60	28.5	TJZ60FR10.5i-24V-571.4R	6	36	24	1050	571.4	5500	1.45	457.1
6000	11.6	2	60	28.5	TJZ60FR11.6i-24V-517.2R	6	36	24	1050	517.2	5500	1.6	413.8
6000	18.6	3	60	33.5	TJZ60FR18.6i-24V-322.6R	6	36	24	1050	322.6	5500	2.31	258.1
6000	24	3	60	33.5	TJZ60FR24i-24V-250R	6	36	24	1050	250	5500	2.99	200
6000	28	3	60	33.5	TJZ60FR28i-24V-214.3R	6	36	24	1050	214.3	5500	3.48	171.4
6000	33.6	3	60	33.5	TJZ60FR33.6i-24V-178.6R	6	36	24	1050	178.6	5500	4.18	142.9
6000	60	4	60	36	TJZ60FR60i-24V-100R	6	36	24	1050	100	5500	6.72	80
6000	83	4	60	36	TJZ60FR83i-24V-72.3R	6	36	24	1050	72.3	5500	9.3	57.8
6000	91	4	60	36	TJZ60FR91i-24V-65.9R	6	36	24	1050	65.9	5500	10	52.7
6000	100	4	60	36	TJZ60FR100i-24V-60R	6	36	24	1050	60	5500	10	48
6000	108	4	60	36	TJZ60FR108i-24V-55.6R	6	36	24	1050	55.6	5500	10	44.4
6000	191	5	60	40	TJZ60FR191i-24V-31.4R	6	36	24	1050	31.4	5500	10	25.1
6000	226	5	60	40	TJZ60FR226i-24V-26.5R	6	36	24	1050	26.5	5500	10	21.2
6000	265	5	60	40	TJZ60FR265i-24V-22.6R	6	36	24	1050	22.6	5500	10	18.1
6000	345	5	60	40	TJZ60FR345i-24V-17.4R	6	36	24	1050	17.4	5500	10	13.9
6000	379	5	60	40	TJZ60FR379i-24V-15.8R	6	36	24	1050	15.8	5500	10	12.7

Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

Housing material: Zinc alloy
Model: TJZ60FR
Bearing: Ball bearing
Gear Modulus: 1.25M
Commutator: Brushed
Gear material: 40Cr steel
Max pressure force on shaft: ≤20kgf
Back lash: ≤2°
Brake available: Yes
Gear construction: Spur gear

Dimensions and Technical Drawings

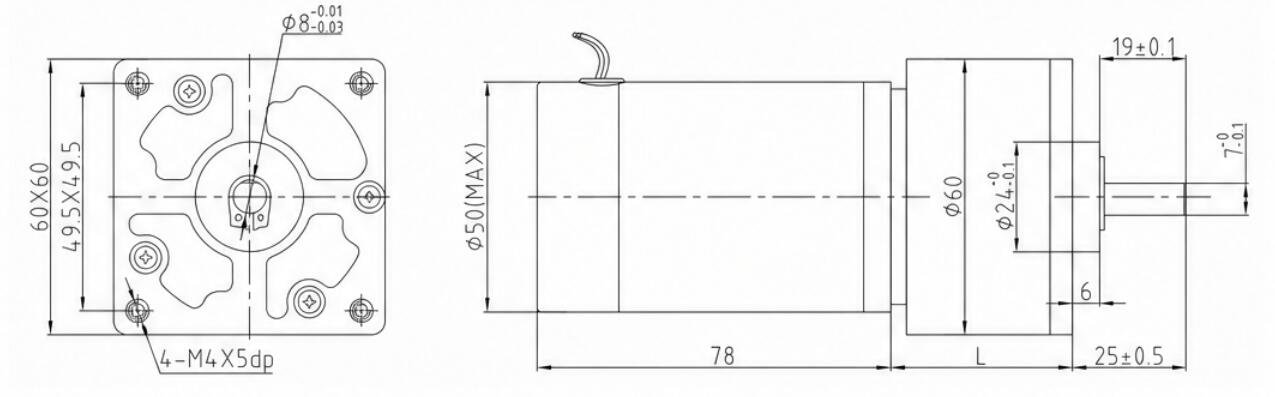

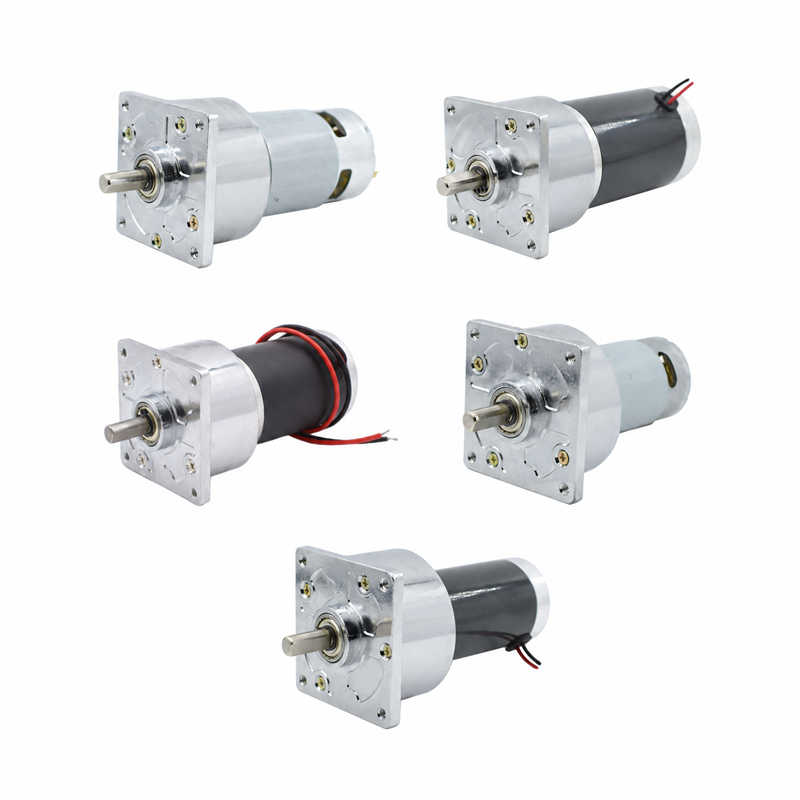

60GA50S 60GA50S original technical reference 1 — 60GA50S original technical reference 1 · Open original image

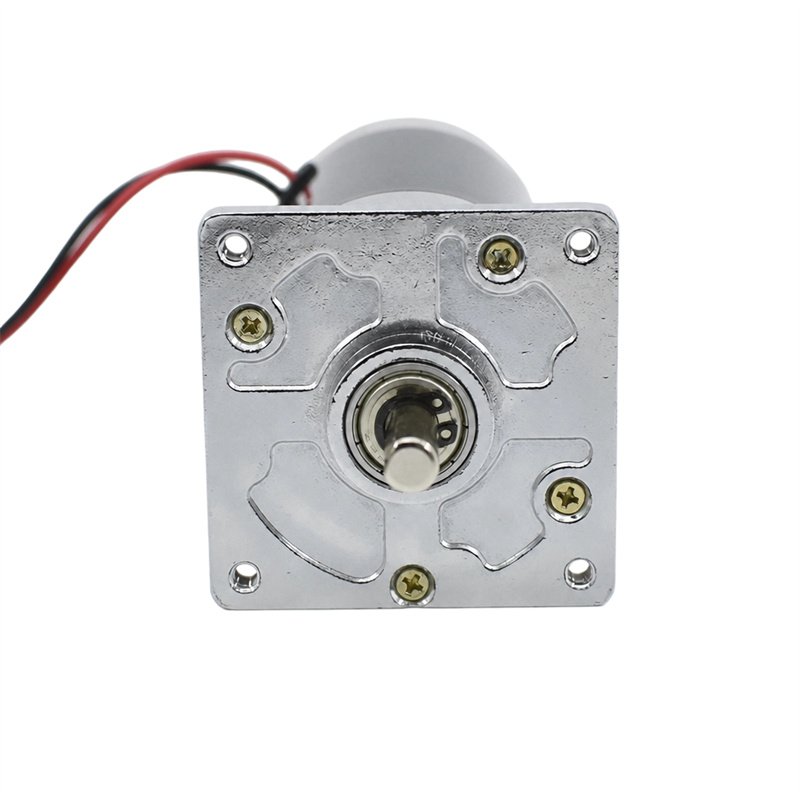

60GA50S 60GA50S original technical reference 2 — 60GA50S original technical reference 2 · Open original image

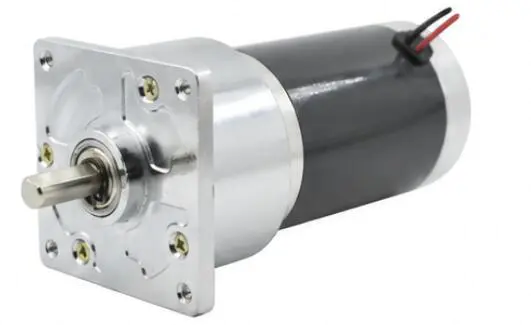

60GA50S 60GA50S original technical reference 3 — 60GA50S original technical reference 3 · Open original image

Match the Configuration to Your Equipment

A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.

Output speed and loaded torque at the selected ratio
Duty cycle, starts, reversing and load direction
Shaft, mounting holes and gearbox length
System supply and complete configuration code

Custom Motor Development Quality and Validation

Questions from OEM buyers

How do I request an OEM quotation for 60GA50S?

Send the complete assembly or configuration code, supply voltage, reduction ratio, loaded output speed and torque, duty cycle, mounting drawing and expected quantity. Include the output shaft and any required control interface.

Can I select this series by its name alone?

Use the complete assembly code, reduction ratio and matching drawing. A series can include different motor windings, gear ratios, shaft details and mounting arrangements; confirm the selected version and output working point.

What should be checked before a production order?

Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
