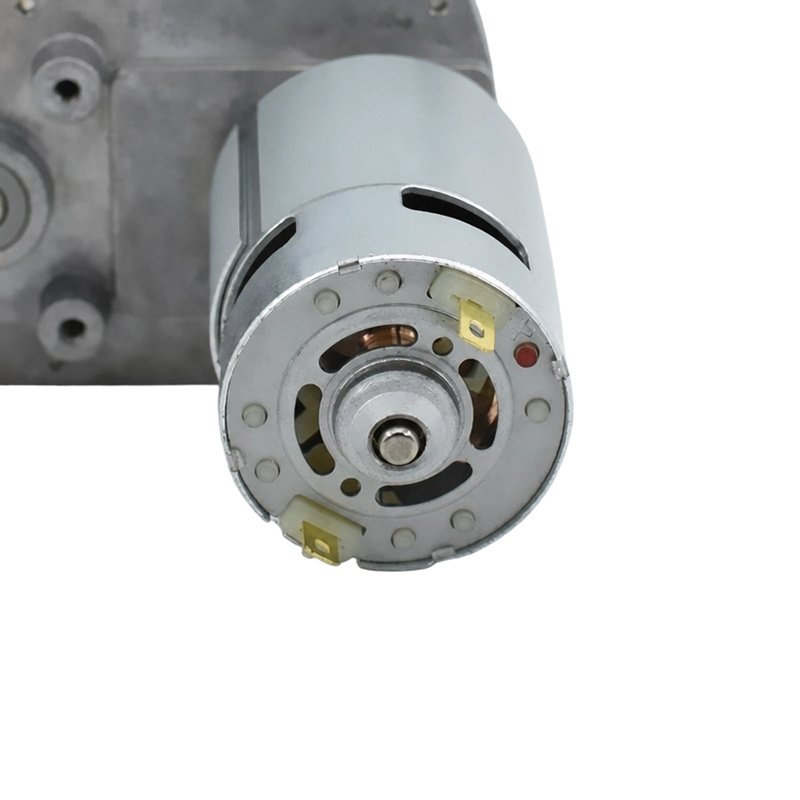

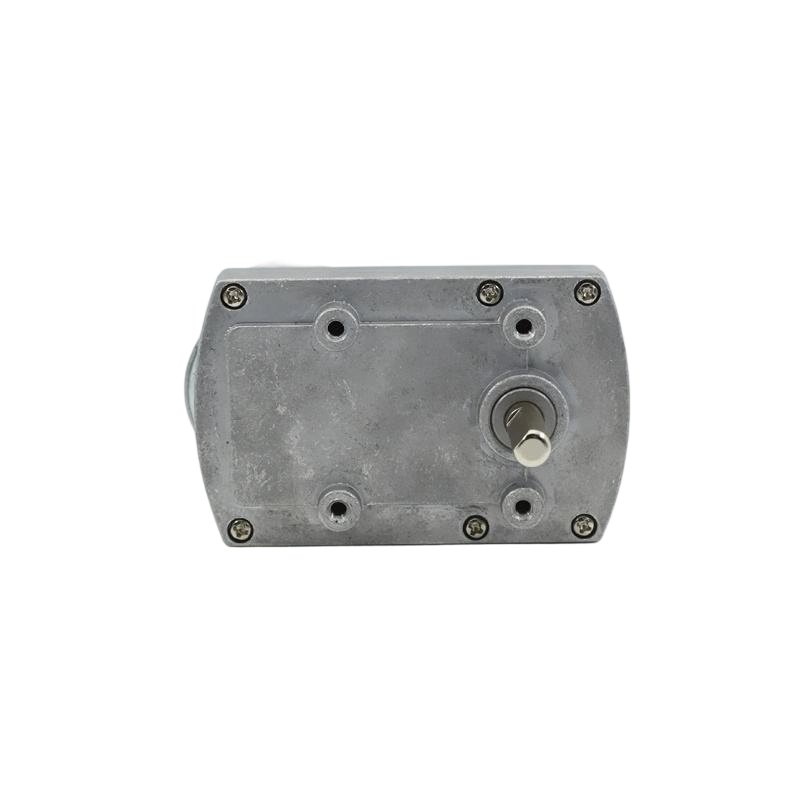

6096FG775 Spur Gear Motor

The 6096FG775 spur gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.

Product type: Spur Gear Motor
Housing material: Zinc alloy
Nominal supply: 24 V

Request This Motor View Specifications

Confirm the full model code, selected drawing and operating requirements for your OEM order.

Specifications and Configuration References

Construction and interface references

Housing material	Zinc alloy	Encoder Optional
Model	TJP96FT	A-B 2 channels 775Encoder-5V 13PPR
Bearing	Oil bearing
Gear Modulus	0.8M
Commutator	Brushed
Gear material	40Cr steel
Max pressure force on shaft	≤15kgf
Back lash	≤2°
Brake available	No
Gear construction	Spur gear

Published ratio-specific configurations

DC MOTOR SPEED	Ratio	Gear Stages	Gearbox Size		Model Number	Voltage		No Load		On Load
DC MOTOR SPEED			Gearbox Size			Operating Range	Rated Voltage	Current	Speed	Current	Torque	Speed
RPM			L	W		Min-Max V	V	mA	RPM	mA	N.m	RPM
6500	37	3	96	60	TJP96FT37i-24V-175.7R	6-36	24	400	175.7	3000	2.32	140.5
6500	77.8	3	96	60	TJP96FT77.8i-24V-83.5R	6-36	24	400	83.5	3000	4.87	66.8
6500	156	4	96	60	TJP96FT156i-24V-41.7R	6-36	24	400	41.7	3000	5	33.3
6500	197	4	96	60	TJP96FT197i-24V-33R	6-36	24	400	33	3000	5	26.4
6500	254	4	96	60	TJP96FT254i-24V-25.6R	6-36	24	400	25.6	3000	5	20.5
6500	297	4	96	60	TJP96FT297i-24V-21.9R	6-36	24	400	21.9	3000	5	17.5
6500	327	4	96	60	TJP96FT327i-24V-19.9R	6-36	24	400	19.9	3000	5	15.9
6500	653	5	96	60	TJP96FT653i-24V-10R	6-36	24	400	10	3000	5	8
6500	826	5	96	60	TJP96FT826i-24V-7.9R	6-36	24	400	7.9	3000	5	6.3
6500	1027	5	96	60	TJP96FT1027i-24V-6.3R	6-36	24	400	6.3	3000	5	5.1
6500	1247	5	96	60	TJP96FT1247i-24V-5.2R	6-36	24	400	5.2	3000	5	4.2

Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

Housing material: Zinc alloy
Model: TJP96FT
Bearing: Oil bearing
Gear Modulus: 0.8M
Commutator: Brushed
Gear material: 40Cr steel
Max pressure force on shaft: ≤15kgf
Back lash: ≤2°
Brake available: No
Gear construction: Spur gear

Dimensions and Technical Drawings

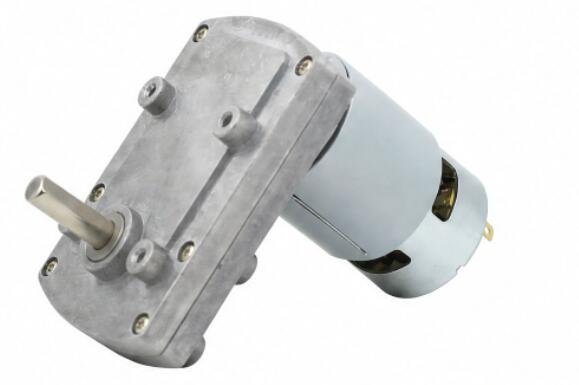

6096FG775 6096FG775 original technical reference 1 — 6096FG775 original technical reference 1 · Open original image

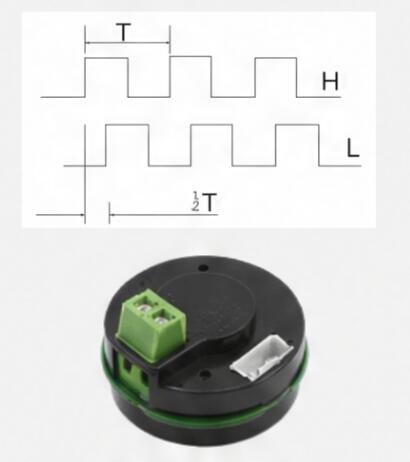

6096FG775 6096FG775 original technical reference 2 — 6096FG775 original technical reference 2 · Open original image

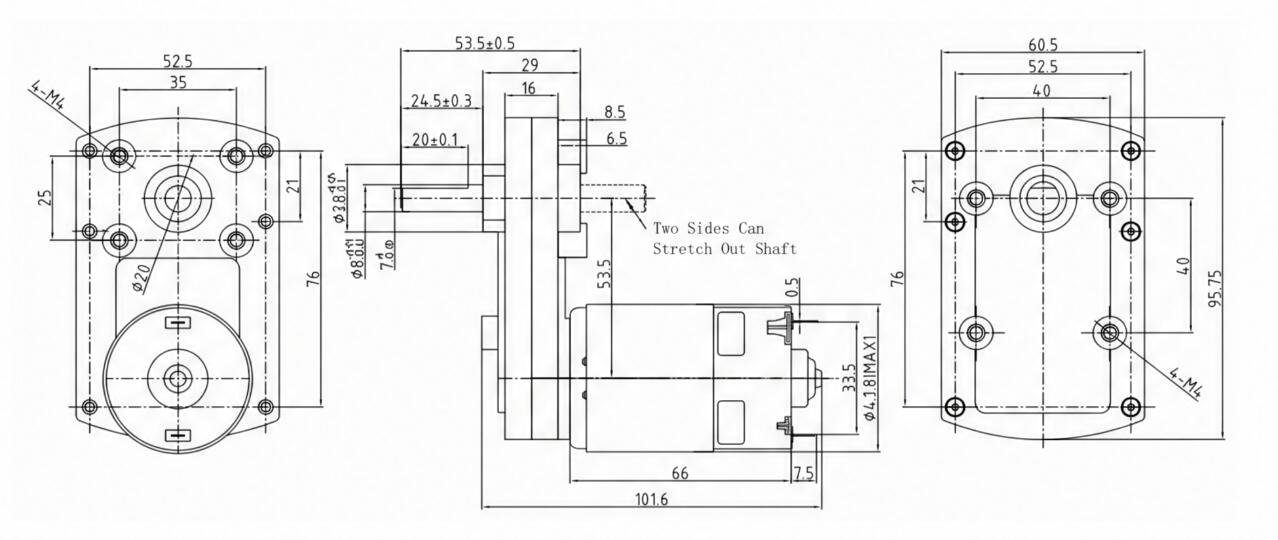

6096FG775 6096FG775 original technical reference 3 — 6096FG775 original technical reference 3 · Open original image

Match the Configuration to Your Equipment

A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.

Output speed and loaded torque at the selected ratio
Duty cycle, starts, reversing and load direction
Shaft, mounting holes and gearbox length
System supply and complete configuration code
