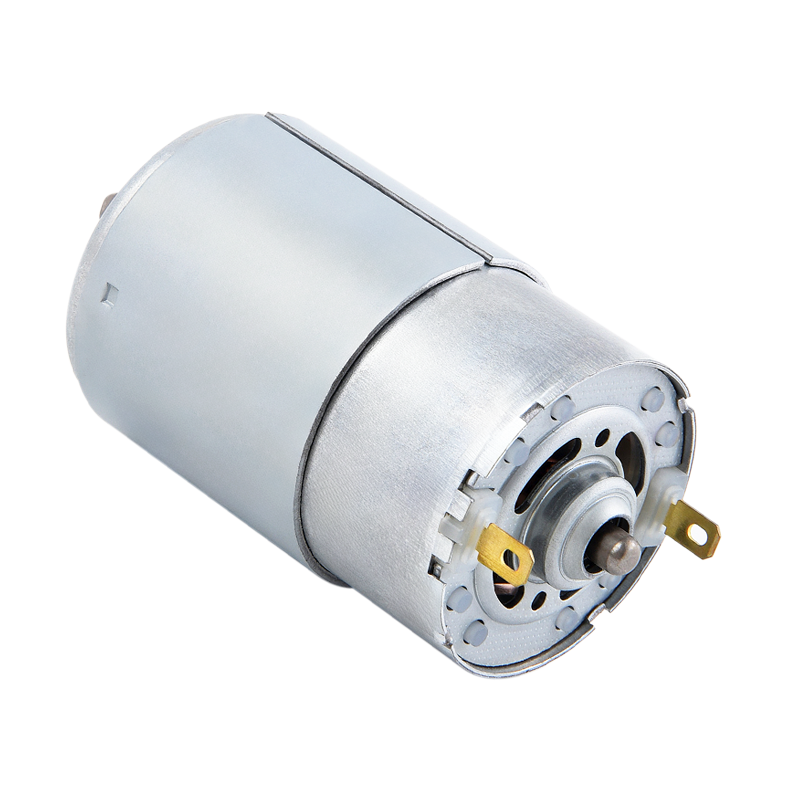

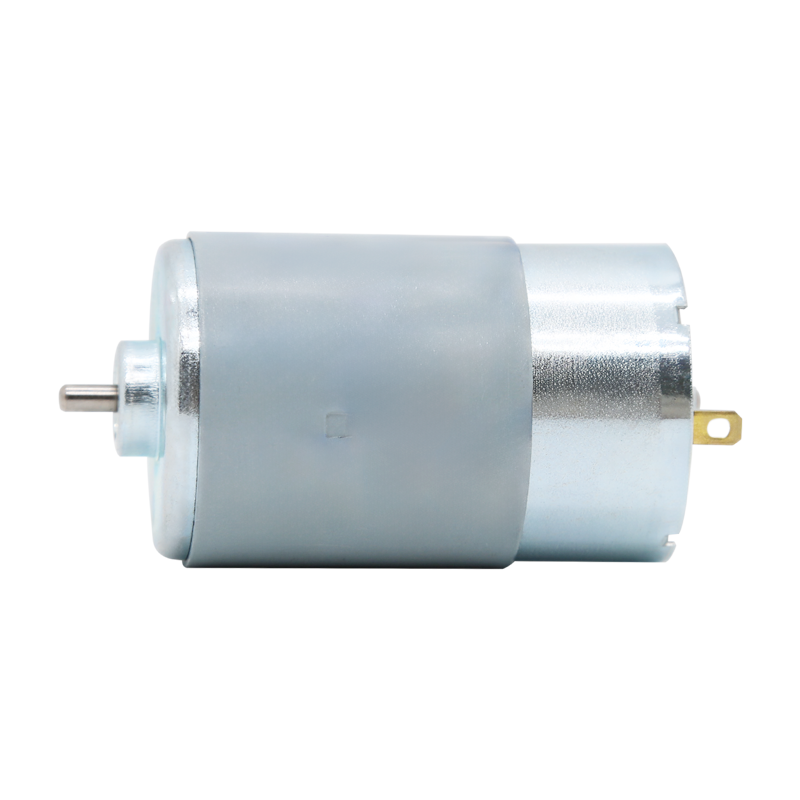

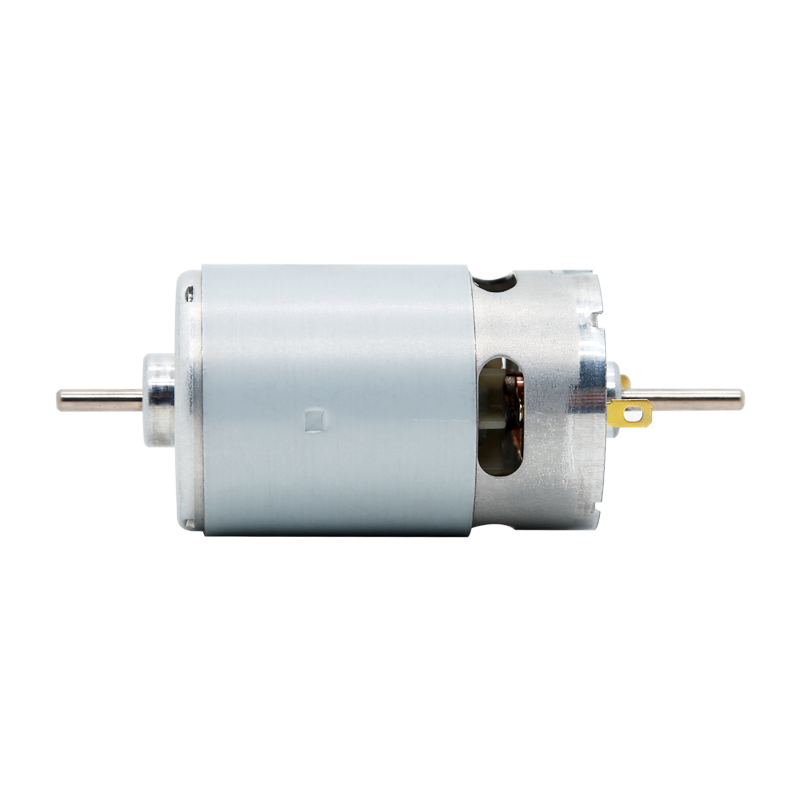

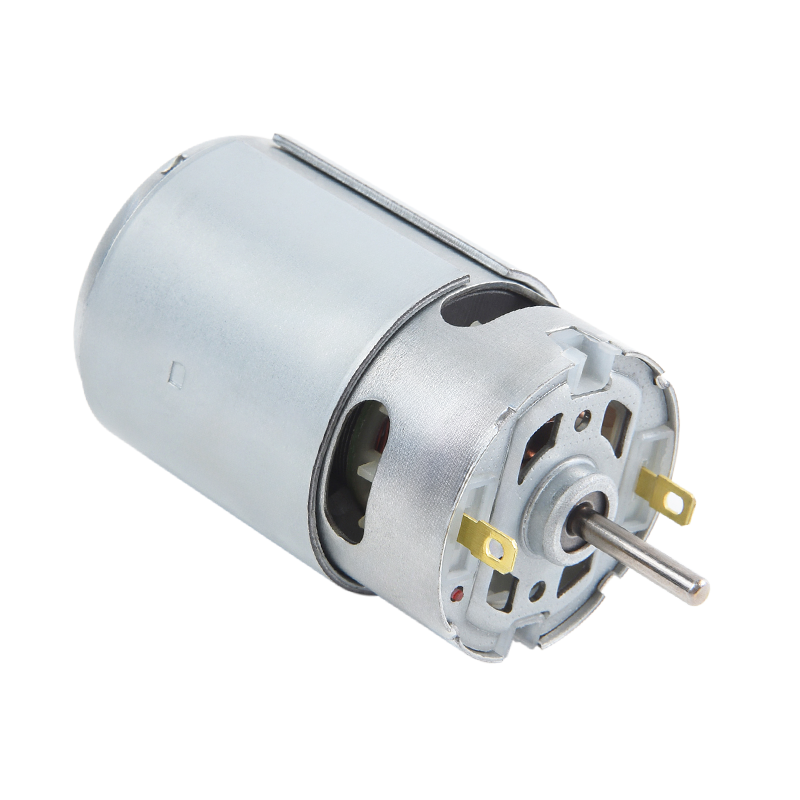

RS-555 Brushed DC Motor
RS-555 is a brushed DC motor series for OEM equipment. Compare the installation dimensions and published configurations, then confirm the shaft, winding and loaded working point for your assembly.
- Product type
- Brushed DC Motor
- Motor Length
- 57mm(Excluding the Shaft)
- Motor Diameter
- 35.8mm(Add Magnet Shield Ring: 38.5mm Max)
- Nominal supply
- 12 / 24 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Specifications and Configuration References
Dimensions and Source Customization Ranges
| Motor Length: | 57mm(Excluding the Shaft) |
| Motor Diameter: | 35.8mm(Add Magnet Shield Ring: 38.5mm Max) |
| Shaft Length: | Custom |
| Shaft Diameter: | 3.175mm |
| Shaft Type: | Round, D-Cut, Knurling, Thread, Ribbing, etc. |
| Voltage: | 0-36V |
| Speed: | 2000-30000RPM |
| Torque: | 0-0.04N.m |
The broad voltage, speed and torque ranges in this legacy source block describe historical customization references. They are not the nominal ratings of one winding, a continuous-duty operating envelope, or a promise that every value or combination is available. Use the complete selected configuration and its agreed test conditions for an order.
Published Winding Configurations
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| HRS-555P-5114 | 12.0 - 24.0 | 12.0V CONSTANT | 13100 | 0.62 | 11400 | 4.2 | 325 | 31.85 | 38 | 75.4 | 28.3 | 2505 | 245.5 |
| HRS-555P-3769 | 18.0 - 36.0 | 24.0V CONSTANT | 9400 | 0.25 | 8000 | 1.4 | 300 | 29.4 | 24.61 | 73.2 | 8 | 2014 | 197.4 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.
Legacy range note: broad voltage, speed and torque figures below are historical customization references, not the nominal rating or confirmed available operating range of one selected motor. Check the complete winding/configuration and its test conditions.
- Motor Length
- 57mm(Excluding the Shaft)
- Motor Diameter
- 35.8mm(Add Magnet Shield Ring: 38.5mm Max)
- Shaft Length
- Custom
- Shaft Diameter
- 3.175mm
- Shaft Type
- Round, D-Cut, Knurling, Thread, Ribbing, etc.
- Voltage
- 0-36V
- Speed
- 2000-30000RPM
- Torque
- 0-0.04N.m
Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Supply voltage and loaded speed/torque
- Duty cycle, starting current and thermal conditions
- Shaft projection, diameter and mounting holes
- Lead wires, connectors and control requirements
Questions from OEM buyers
How do I request an OEM quotation for RS-555?
Send the complete motor or winding code, supply voltage, loaded speed and torque, duty cycle, installation drawing and expected quantity. Include the shaft, mounting and terminal requirements for your OEM assembly.
Can I select this series by its name alone?
Use the complete winding code and matching drawing. Motors with the same series name can have different windings, shaft details and operating points; confirm the selected version before sample evaluation.
What should be checked before a production order?
Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
