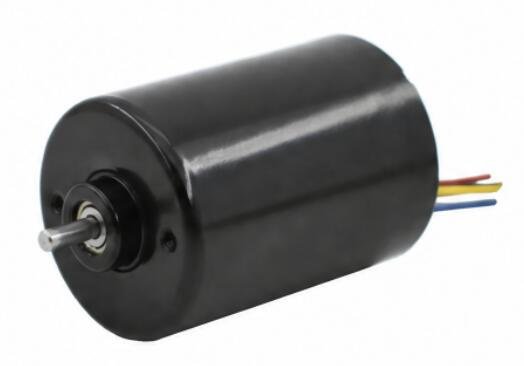

3650BL Brushless DC Motor

3650BL is a brushless DC motor series for OEM equipment. Review the motor dimensions, supply configuration and control connections together with the driver and operating requirements.

Product type: Brushless DC Motor
Motor body diameter: 36 mm
Motor body length: 50 mm
Nominal supply: 12 / 24 V

Request This Motor View Specifications

Confirm the full model code, selected drawing and operating requirements for your OEM order.

Specifications and Configuration References

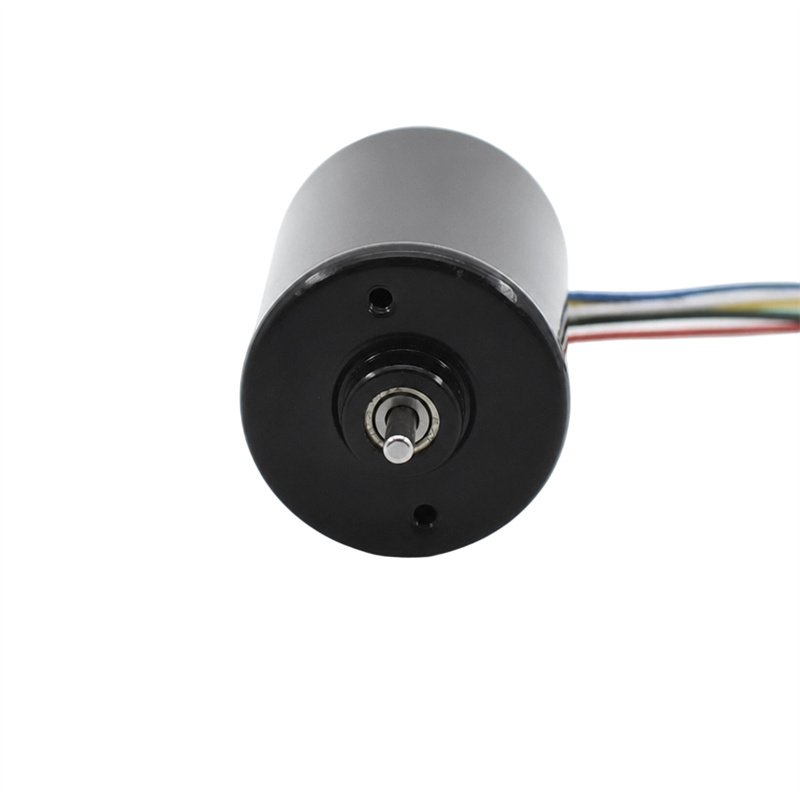

Construction References

Property	Source reference
Housing material	Steel
Model	3650BL
Bearing	Ball bearing
Commutator	Brushless
Connector	XHP2.5-6P

Wiring References

Wire	Function
Red	Motor +
Black	Motor -
White	CW/CCW
Blue	PWM
Green	Brake

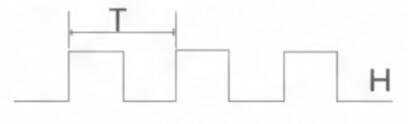

Yellow	FG-6PPR

Published Winding Configurations

DC MOTOR SPEED	Gearbox Size		Model Number	Voltage		No Load		On Load
DC MOTOR SPEED	Gearbox Size			Operating Range	Rated Voltage	Current	Speed	Current	Torque	Speed
RPM	Dia	L		Min-Max V	V	mA	RPM	mA	N.m	RPM
5000	36	50	3650BL-12V-5000R	3.0-18.0	12	280	5000	1050	0.021	4000
5000	36	50	3650BL-24V-5000R	6.0-36.0	24	135	5000	550	0.022	4000

Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

Motor body diameter: 36 mm
Motor body length: 50 mm
Motor structure: Brushless DC

Dimensions and Technical Drawings

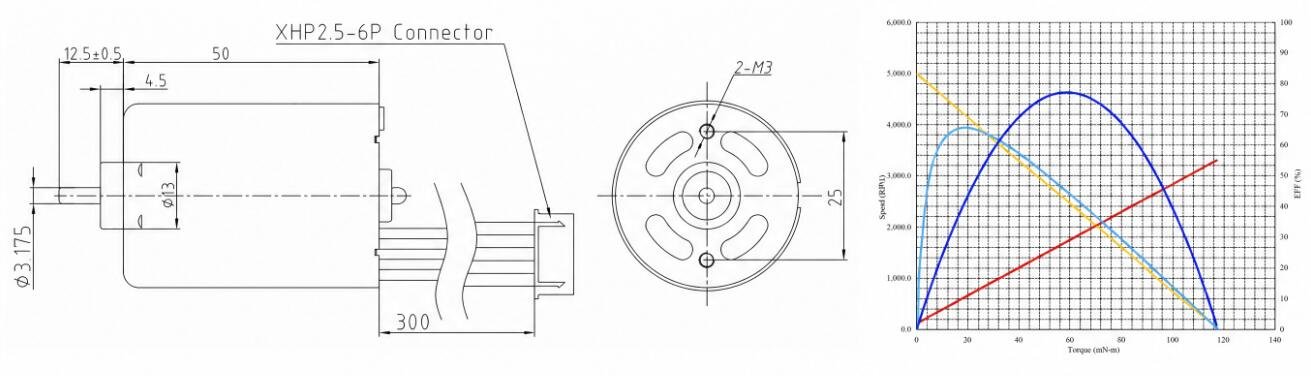

3650BL 3650BL technical drawing or performance reference — 3650BL technical drawing or performance reference · Open original image
