28mm Brushless Outrunner
A 28 mm brushless outrunner product reference with an original mechanical drawing. Confirm the electrical configuration and controller requirements before selecting it for an OEM assembly. The page title is a descriptive reference rather than a confirmed ordering code. Confirm the formal assembly model and selected configuration with Hongyang before sampling or ordering.
- Product type
- Brushless DC Motor
- Drawing body diameter reference
- Ø28 mm
- Drawing body length reference
- 38.5 mm; confirm drawing datum and selected configuration
- Nominal supply
- Confirm selected winding
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Descriptive reference · Formal model to confirm
Specifications and Configuration References
Details to Confirm Before Selection
| Detail | Status and required confirmation |
|---|---|
| Model identification | To be confirmed. The original drawing has a blank product-code field. Confirm the formal order code. |
| Electrical configuration | To be confirmed. No reliable rated voltage, speed/torque/current table or winding data is available in the archived product-specific source. |
| Operating limits | To be confirmed. Confirm controller type, phase connections, operating point, duty cycle and shaft/mounting requirements. |
| Drawing and dimensions | To be confirmed. Confirm the selected drawing revision and full orderable configuration with Hongyang. |
| Operating limits | To be confirmed. Confirm continuous-duty ratings, controller compatibility and test conditions before using this reference for equipment selection. |
- Motor construction
- Brushless outrunner, as listed in the original product source
- Drawing body diameter reference
- Ø28 mm
- Drawing body length reference
- 38.5 mm; confirm drawing datum and selected configuration
- Drawing shaft diameter reference
- Ø4 mm; confirm tolerance and shaft detail on the drawing
- Model identity
- Formal product code not supplied in the archived drawing
Details to Confirm Before Selection
This entry uses a descriptive reference name. The formal model code and selected configuration require confirmation before sampling or ordering.

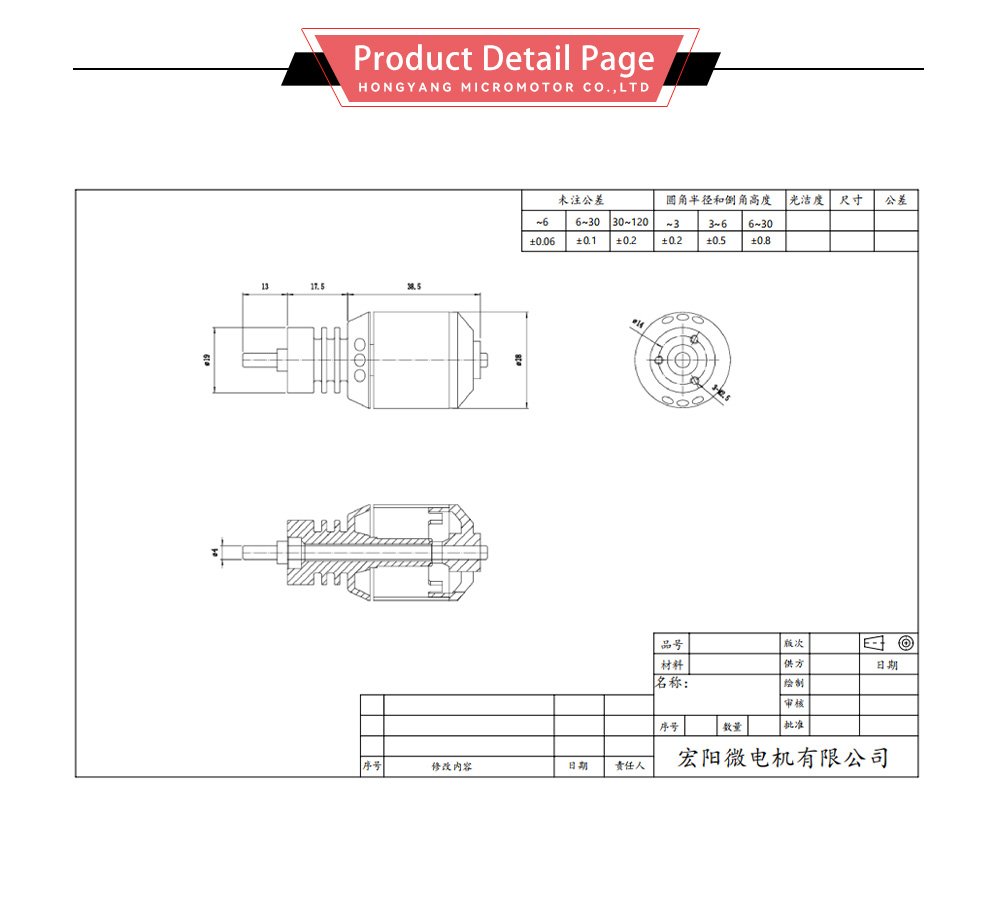

Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Supply voltage and loaded speed/torque
- Duty cycle, starting current and thermal conditions
- Shaft projection, diameter and mounting holes
- Lead wires, connectors and control requirements
Questions from OEM buyers
How do I request an OEM quotation for 28mm Brushless Outrunner?
Send the complete motor or configuration code, supply voltage, loaded operating point, duty cycle, installation drawing and expected quantity. Include the shaft, mounting, controller, connection and feedback requirements that apply.
Can I select this series by its name alone?
Use the complete configuration code and matching drawing. The winding, controller interface, connections and mechanical arrangement must be checked for the selected version before sample evaluation.
What should be checked before a production order?
Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
