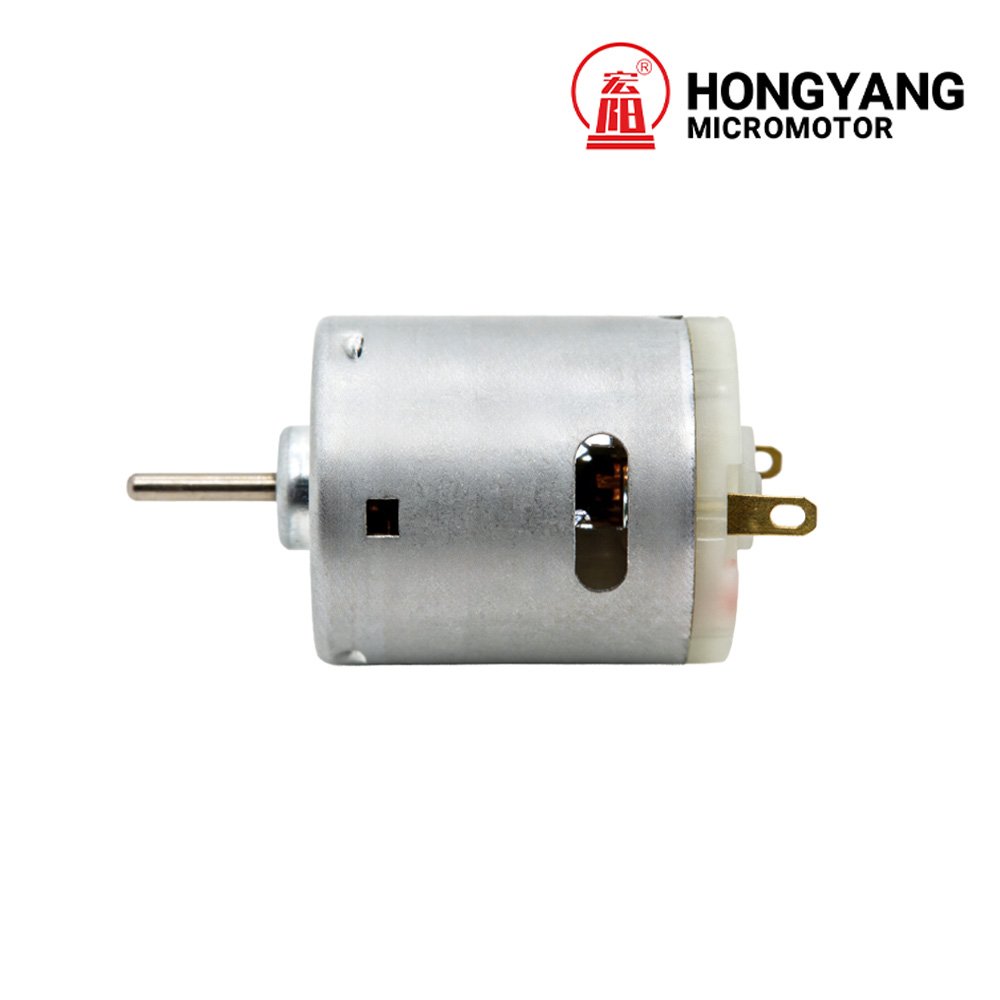

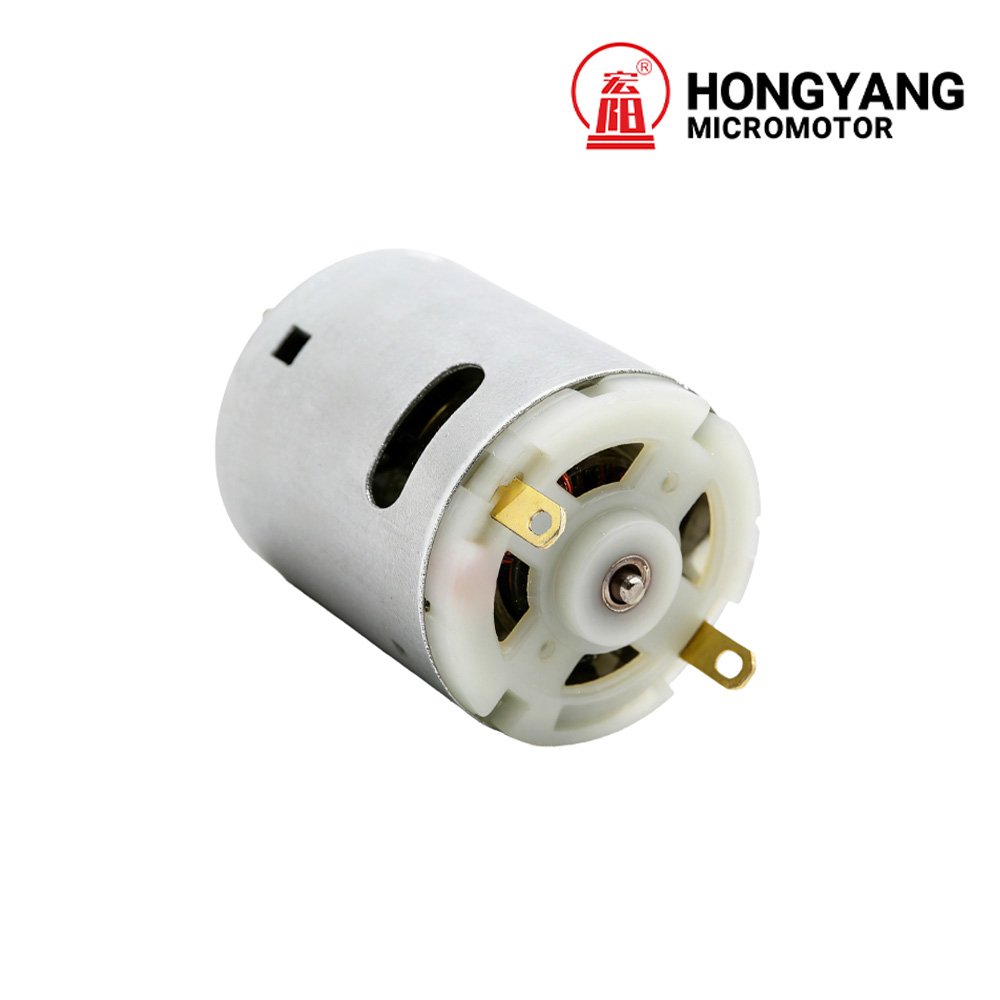

RS-365 Brushed DC Motor
RS-365 is a brushed DC motor series with two published HRS-365P winding references at 18 V and 24 V nominal supply. Compare the complete winding code and working point, then send your shaft drawing, installation constraints and order quantity for OEM selection. Available references are retained below; request the datasheet and approved drawing for the selected configuration, including the items marked for confirmation, before sampling or ordering.
- Product type
- Brushed DC Motor
- Body length reference
- 32.6 ± 0.5 mm (shared 360/365 outline; confirm selected revision)
- Body diameter reference
- 27.7 mm (shared 360/365 outline; confirm selected revision)
- Nominal supply
- 18 / 24 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Configuration details to confirm
Specifications and Configuration References
Details to Confirm Before Selection
| Detail | Status and required confirmation |
|---|---|
| Drawing and dimensions | To be confirmed. Selected RS-365 drawing revision, final shaft length/termination and installation dimensions: to be confirmed before approval. |
| Electrical configuration | To be confirmed. Duty cycle, loaded thermal limits and EMC requirements: to be confirmed for the selected HRS-365P winding and application. |
RS-365 dimensional references
| Motor type | Brushed DC motor |
|---|---|
| Body length reference | 32.6 ± 0.5 mm (shared 360/365 outline; confirm selected revision) |
| Body diameter reference | 27.7 mm (shared 360/365 outline; confirm selected revision) |
| Shaft diameter reference | 2.3 mm (shared 360/365 outline; confirm selected revision) |
HRS-365P winding references
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| HRS-365P-3179 | 8.0 - 24.0 | 18.0V CONSTANT | 19200 | 0.3 | 15480 | 1.2 | 85 | 8.33 | 13.5 | 62.5 | 5 | 438.8 | 43.01 |
| HRS-365P-2972 | 12.0 - 30.0 | 24.0V CONSTANT | 28500 | 0.32 | 23500 | 1.1 | 70 | 6.86 | 16.9 | 64 | 4.8 | 399 | 39.1 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.
- Motor type
- Brushed DC motor
- Body length reference
- 32.6 ± 0.5 mm (shared 360/365 outline; confirm selected revision)
- Body diameter reference
- 27.7 mm (shared 360/365 outline; confirm selected revision)
- Shaft diameter reference
- 2.3 mm (shared 360/365 outline; confirm selected revision)
Details to Confirm Before Selection
The available photographs and technical references are shown below. Confirm the following details for the selected configuration before sampling or ordering.
Request the Selected Model Datasheet
Share the full model code and your installation requirements. Our team will confirm the relevant drawing and performance data for the intended configuration.
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Supply voltage and loaded speed/torque
- Duty cycle, starting current and thermal conditions
- Shaft projection, diameter and mounting holes
- Lead wires, connectors and control requirements
Questions from OEM buyers
How do I request an OEM quotation for RS-365?
Send the complete motor or winding code, supply voltage, loaded speed and torque, duty cycle, installation drawing and expected quantity. Include the shaft, mounting and terminal requirements for your OEM assembly.
Can I select this series by its name alone?
Use the complete winding code and matching drawing. Motors with the same series name can have different windings, shaft details and operating points; confirm the selected version before sample evaluation.
What should be checked before a production order?
Confirm the selected model code, drawing revision and acceptance requirements, then evaluate the sample in the intended equipment and operating conditions.
