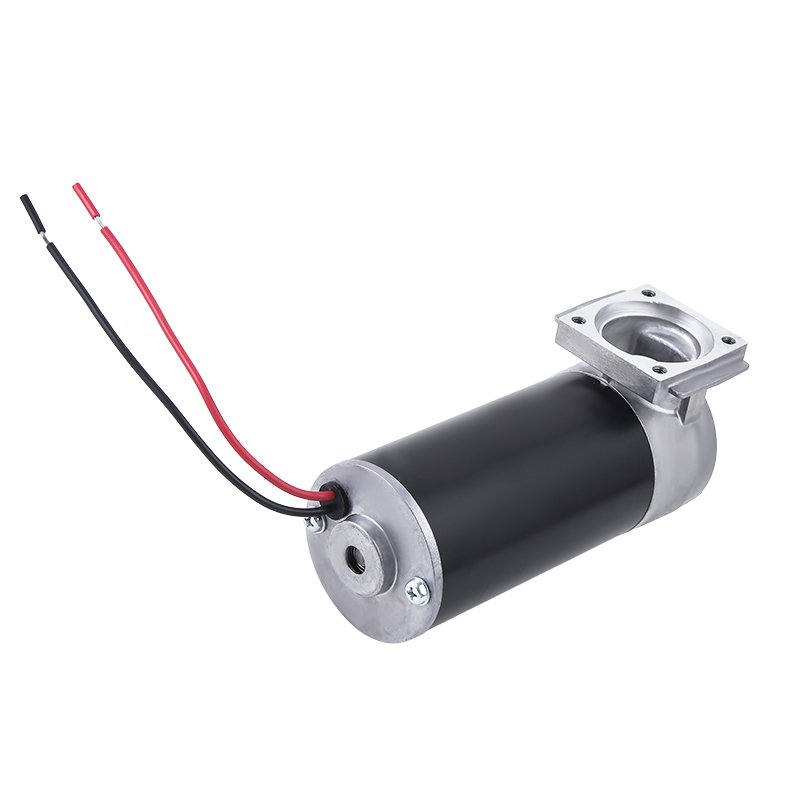

T7812 Brushed DC Motor
T7812 is a brushed DC motor series for OEM equipment. Use the source information to review the shaft, winding and loaded working point for your intended assembly. Available references are retained below; request the datasheet and approved drawing for the selected configuration, including the items marked for confirmation, before sampling or ordering.
- Product type
- Brushed DC Motor
- Motor Body Length
- 0-200mm
- Motor Diameter
- Custom
- Nominal supply
- Confirm selected winding
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Configuration details to confirm
Details to Confirm Before Selection
The available photographs and technical references are shown below. Confirm the following details for the selected configuration before sampling or ordering.
| Detail | Status and required confirmation |
|---|---|
| Configuration detail | To be confirmed. T7812 final body diameter and length: the old page lists custom / 0–200 mm ranges, not a fixed production outline. |
| Electrical configuration | To be confirmed. T7812 exact winding code and nominal voltage, no-load speed/current and loaded speed/torque/current/output: matching manufacturer performance table to be confirmed. |
| Drawing and dimensions | To be confirmed. T7812 final outline revision, shaft extension and mounting dimensions: to be confirmed for the selected build. |
| Operating limits | To be confirmed. T7812 duty cycle, thermal limits and EMC requirements under the specified load: to be confirmed. |
Specifications and Configuration References
Legacy range note: broad voltage, speed and torque figures below are historical customization references, not the nominal rating or confirmed available operating range of one selected motor. Check the complete winding/configuration and its test conditions.
- Motor Body Length
- 0-200mm
- Shaft Length
- Custom
- Motor Diameter
- Custom
- Voltage
- 0-36V
- No-Load Current
- 0-3A
- Load Current
- 0-20A
- Rotational Speed
- 1000-30000rpm
- Load Torque
- 0-4000g.cm
Dimensions and Source Customization Ranges
The broad voltage, speed and torque ranges in this legacy source block describe historical customization references. They are not the nominal ratings of one winding, a continuous-duty operating envelope, or a promise that every value or combination is available. Use the complete selected configuration and its agreed test conditions for an order.
| Motor Body Length: | 0-200mm |
| Shaft Length: | Custom |
| Motor Diameter: | Custom |
| Voltage: | 0-36V |
| No-Load Current: | 0-3A |
| Load Current: | 0-20A |
| Rotational Speed: | 1000-30000rpm |
| Load Torque: | 0-4000g.cm |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.
Request the Selected Model Datasheet
Share the full model code and your installation requirements. Our team will confirm the relevant drawing and performance data for the intended configuration.
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Supply voltage and loaded speed/torque
- Duty cycle, starting current and thermal conditions
- Shaft projection, diameter and mounting holes
- Lead wires, connectors and control requirements
