RS-380SL Brushed DC Motor
RS-380SL is a brushed DC motor series for OEM equipment. Use the source information to review the shaft, winding and loaded working point for your intended assembly. Available references are retained below; request the datasheet and approved drawing for the selected configuration, including the items marked for confirmation, before sampling or ordering.
- Product type
- Brushed DC Motor
- Motor Length
- 46.5mm(Excluding the Shaft)
- Motor Diameter
- 27.7mm(Add Magnet Shield Ring: 30mm Max)
- Nominal supply
- 3.6 / 12 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Configuration details to confirm
Details to Confirm Before Selection
The available photographs and technical references are shown below. Confirm the following details for the selected configuration before sampling or ordering.
| Detail | Status and required confirmation |
|---|---|
| Sales name and drawing code | To be confirmed. The source uses PL configuration codes under an SL series name. Confirm the selected order code and drawing correspondence. |
Specifications and Configuration References
Legacy range note: broad voltage, speed and torque figures below are historical customization references, not the nominal rating or confirmed available operating range of one selected motor. Check the complete winding/configuration and its test conditions.
- Motor Length
- 46.5mm(Excluding the Shaft)
- Motor Diameter
- 27.7mm(Add Magnet Shield Ring: 30mm Max)
- Shaft Length
- Custom
- Shaft Diameter
- 2.3mm
- Shaft Type
- Round, D-Cut, Knurling, Thread, Ribbing, etc.
- Voltage
- 0-36V
- Speed
- 2000-30000RPM
- Torque
- 0-0.15N.m
Dimensions and Source Customization Ranges
The broad voltage, speed and torque ranges in this legacy source block describe historical customization references. They are not the nominal ratings of one winding, a continuous-duty operating envelope, or a promise that every value or combination is available. Use the complete selected configuration and its agreed test conditions for an order.
| Motor Length: | 46.5mm(Excluding the Shaft) |
| Motor Diameter: | 27.7mm(Add Magnet Shield Ring: 30mm Max) |
| Shaft Length: | Custom |
| Shaft Diameter: | 2.3mm |
| Shaft Type: | Round, D-Cut, Knurling, Thread, Ribbing, etc. |
| Voltage: | 0-36V |
| Speed: | 2000-30000RPM |
| Torque: | 0-0.15N.m |

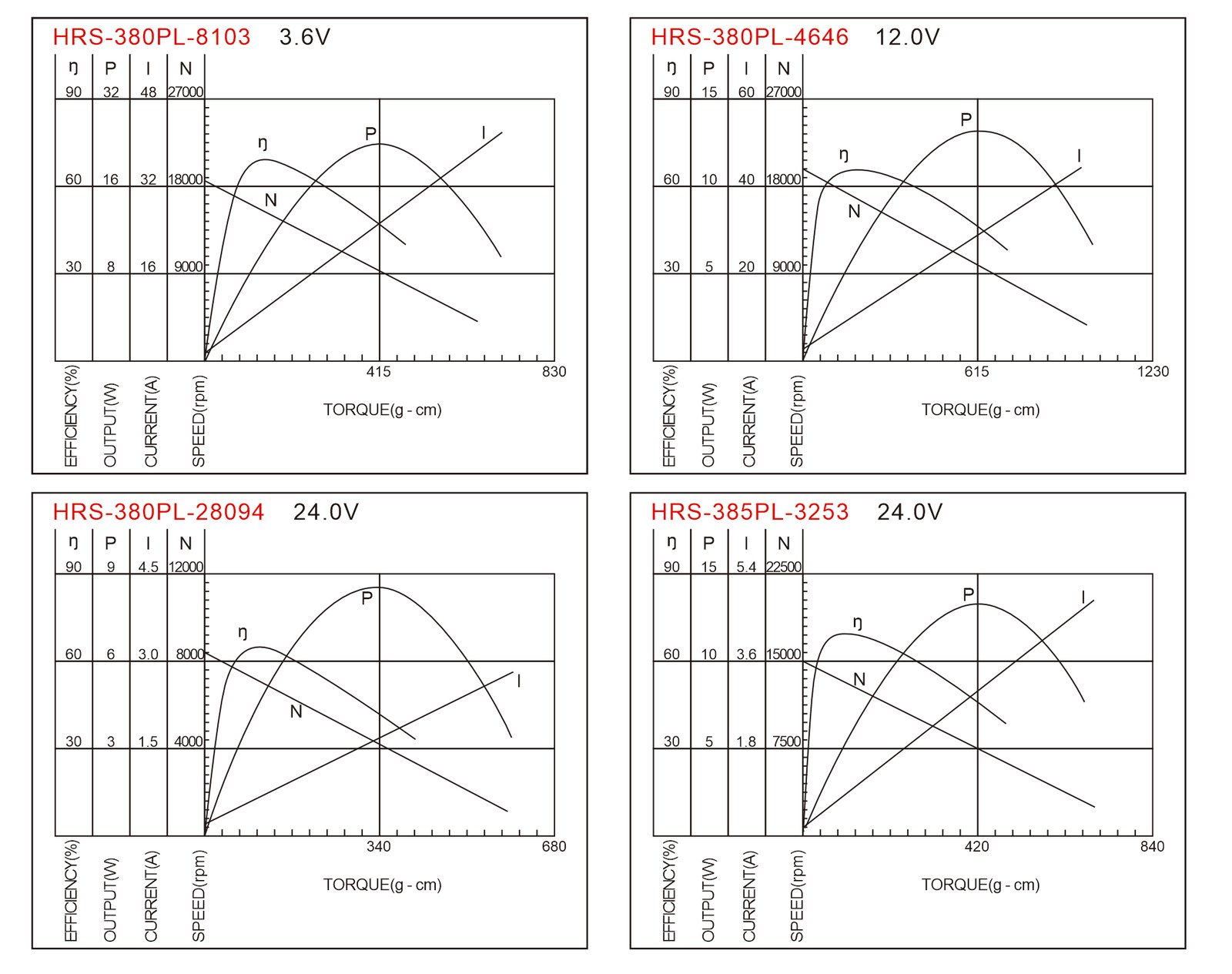

Published Winding Configurations
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| HRS-380PL-8103 | 2.0 - 6.0 | 3.6V CONSTANT | 18800 | 1.6 | 15400 | 9.6 | 150 | 14.7 | 23.69 | 68.5 | 45.9 | 829.5 | 81.29 |
| HRS-380PL-4646 | 6.0 - 12.0 | 12.0V CONSTANT | 20000 | 0.53 | 17300 | 3.4 | 110 | 10.78 | 13.32 | 67.3 | 21.8 | 1259 | 123.38 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

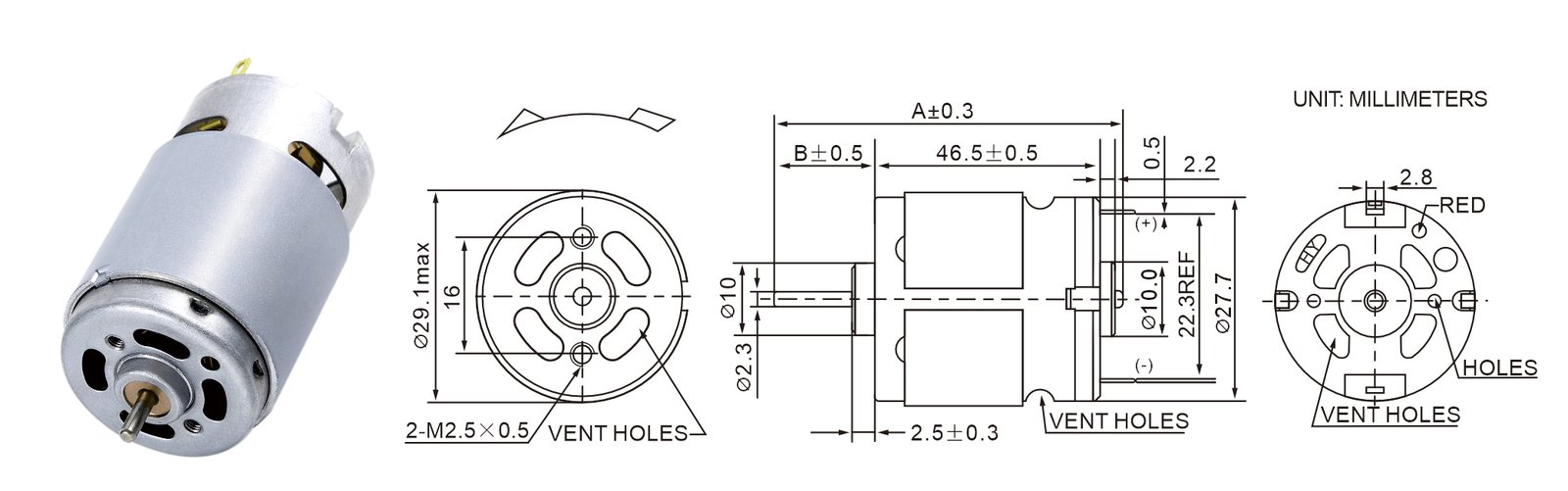

Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Supply voltage and loaded speed/torque
- Duty cycle, starting current and thermal conditions
- Shaft projection, diameter and mounting holes
- Lead wires, connectors and control requirements
