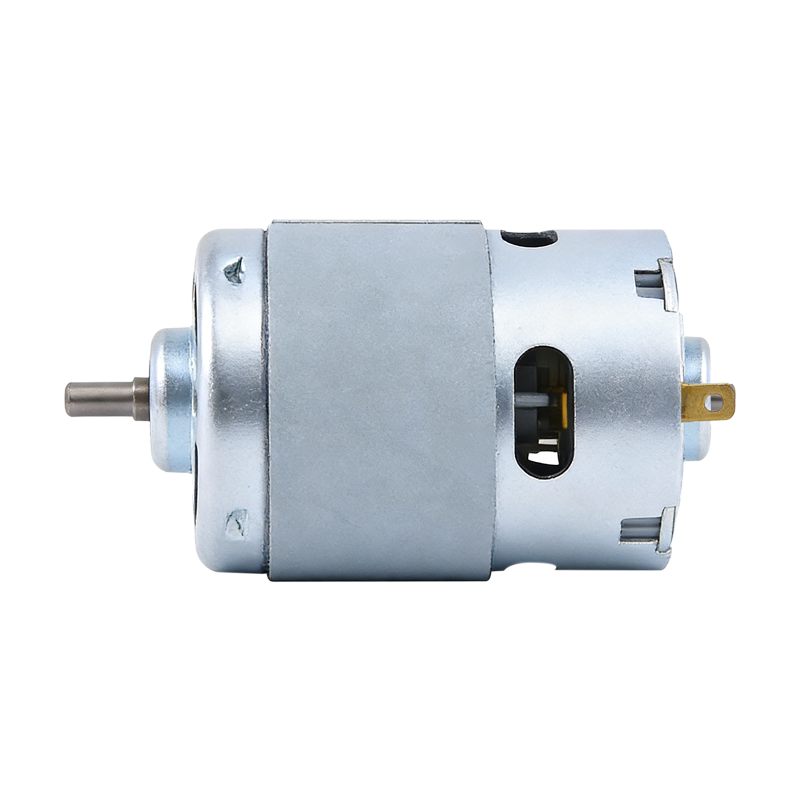

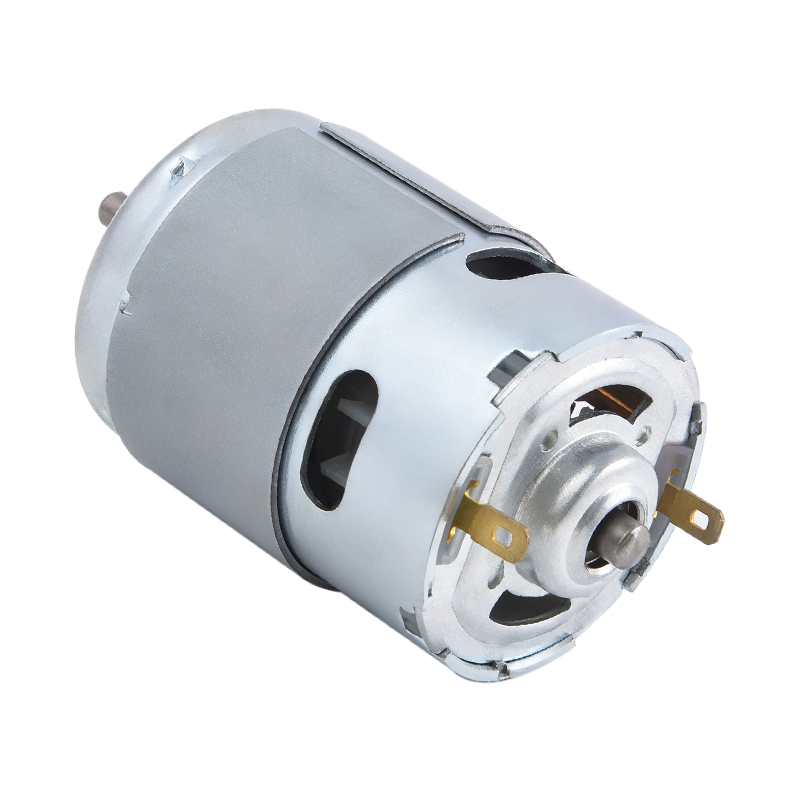

RS-977 Brushed DC Motor
RS-977 is a brushed DC motor series for OEM equipment. Compare the installation dimensions and published configurations, then confirm the shaft, winding and loaded working point for your assembly.
- Product type
- Brushed DC Motor
- Motor Length
- 69mm(Excluding the Shaft)
- Motor Diameter
- 52mm(Add Magnet Shield Ring: 54mm Max)
- Nominal supply
- 7.2 / 12 / 24 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Specifications and Configuration References
Legacy range note: broad voltage, speed and torque figures below are historical customization references, not the nominal rating or confirmed available operating range of one selected motor. Check the complete winding/configuration and its test conditions.
- Motor Length
- 69mm(Excluding the Shaft)
- Motor Diameter
- 52mm(Add Magnet Shield Ring: 54mm Max)
- Shaft Length
- Custom
- Shaft Diameter
- 6.35mm
- Shaft Type
- Round, D-Cut, Knurling, Thread, Ribbing, etc.
- Voltage
- 0-36V
- Speed
- 2000-30000RPM
- Torque
- 0-1.5N.m
Dimensions and Source Customization Ranges
The broad voltage, speed and torque ranges in this legacy source block describe historical customization references. They are not the nominal ratings of one winding, a continuous-duty operating envelope, or a promise that every value or combination is available. Use the complete selected configuration and its agreed test conditions for an order.
| Motor Length: | 69mm(Excluding the Shaft) |
| Motor Diameter: | 52mm(Add Magnet Shield Ring: 54mm Max) |
| Shaft Length: | Custom |
| Shaft Diameter: | 6.35mm |
| Shaft Type: | Round, D-Cut, Knurling, Thread, Ribbing, etc. |
| Voltage: | 0-36V |
| Speed: | 2000-30000RPM |
| Torque: | 0-1.5N.m |
Published Winding Configurations
| MODEL | VOLTAGE | NO LOAD | AT MAXIMUM EFFICIENCY | STALL | |||||||||
| OPERATING RANGE | NOMINAL | SPEED | CURRENT | SPEED | CURRENT | TORQUE | OUTPUT | EFF | CURRENT | TORQUE | |||
| rpm | A | rpm | A | g-cm | mN-m | W | % | A | g-cm | mN-m | |||
| HRS-977S-8102 | 6.0 - 9.0 | 7.2V CONSTANT | 6100 | 2 | 5600 | 6 | 500 | 49 | 28.71 | 66.5 | 50.8 | 6100 | 597.8 |
| HRS-977S-8698F | 9.0 - 15.0 | 12.0V CONSTANT | 13000 | 2.6 | 12000 | 8.5 | 500 | 49 | 61.53 | 60.3 | 79.3 | 6500 | 637 |
| HRS-977S-4834F | 18.0 - 24.0 | 24.0V CONSTANT | 6200 | 0.9 | 5550 | 1.75 | 500 | 49 | 28.46 | 67.8 | 9.01 | 4769 | 467.4 |
| HRS-977S-7612F | 18.0 - 24.0 | 24.0V CONSTANT | 17500 | 2.5 | 15600 | 10 | 900 | 88.2 | 144 | 60 | 71.6 | 8290 | 812.4 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.
Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Supply voltage and loaded speed/torque
- Duty cycle, starting current and thermal conditions
- Shaft projection, diameter and mounting holes
- Lead wires, connectors and control requirements
