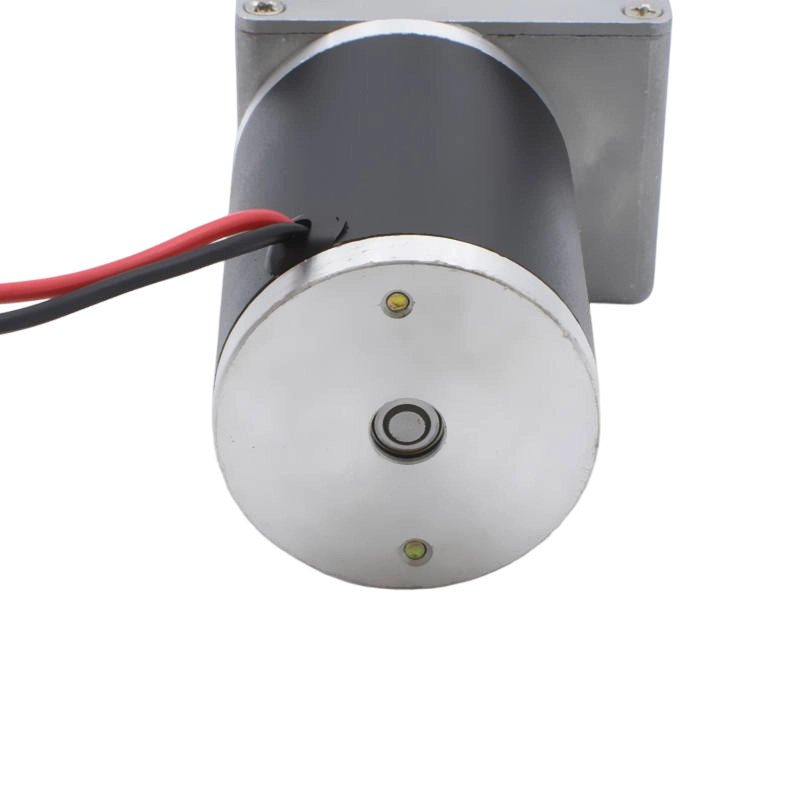

5883WG45S Worm Gear Motor
The 5883WG45S worm gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.
- Product type
- Worm Gear Motor
- Housing material
- Zinc alloy
- Nominal supply
- 24 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Specifications and Configuration References
- Housing material
- Zinc alloy
- Model
- TJW83FN
- Bearing
- Ball bearing
- Gear Modulus
- 1.25M
- Commutator
- Brushed
- Gear material
- 40Cr steel
- Max pressure force on shaft
- ≤20kgf
- Back lash
- ≤2°
- Brake available
- Yes
- Gear construction
- Worm gear
Construction and interface references
| Housing material | Zinc alloy | Encoder Optional | |
| Model | TJW83FN | A-B 2 channels D-shape Encoder-5V 13PPR |
|
| Bearing | Ball bearing | ||
| Gear Modulus | 1.25M | ||
| Commutator | Brushed | ||
| Gear material | 40Cr steel | ||
| Max pressure force on shaft | ≤20kgf | ||
| Back lash | ≤2° | ||
| Brake available | Yes | ||
| Gear construction | Worm gear |
Published ratio-specific configurations
| DC MOTOR SPEED | Ratio | Gear Stages | Gearbox Size | Model Number | Voltage | No Load | On Load | |||||
| Operating Range | Rated Voltage | Current | Speed | Current | Torque | Speed | ||||||
| RPM | L | W | Min-Max V | V | mA | RPM | mA | N.m | RPM | |||
| 6000 | 15.9 | 3 | 83 | 58 | TJW83FN15.9i-24V-377.4R | 6-36 | 24 | 400 | 377.4 | 1500 | 0.54 | 301.9 |
| 6000 | 82.5 | 3 | 83 | 58 | TJW83FN82.5i-24V-72.7R | 6-36 | 24 | 400 | 72.7 | 1500 | 2.8 | 58.2 |
| 6000 | 111.7 | 3 | 83 | 58 | TJW83FN111.7i-24V-53.7R | 6-36 | 24 | 400 | 53.7 | 1500 | 3.79 | 43 |
| 6000 | 165 | 3 | 83 | 58 | TJW83FN165i-24V-36.4R | 6-36 | 24 | 400 | 36.4 | 1500 | 5.6 | 29.1 |
| 6000 | 223.4 | 3 | 83 | 58 | TJW83FN223.4i-24V-26.9R | 6-36 | 24 | 400 | 26.9 | 1500 | 7.58 | 21.5 |
| 6000 | 275 | 4 | 83 | 58 | TJW83FN275i-24V-21.8R | 6-36 | 24 | 400 | 21.8 | 1500 | 8.4 | 17.5 |
| 6000 | 372 | 4 | 83 | 58 | TJW83FN372i-24V-16.1R | 6-36 | 24 | 400 | 16.1 | 1500 | 11.36 | 12.9 |
| 6000 | 550 | 4 | 83 | 58 | TJW83FN550i-24V-10.9R | 6-36 | 24 | 400 | 10.9 | 1500 | 15 | 8.7 |
| 6000 | 745 | 4 | 83 | 58 | TJW83FN745i-24V-8.1R | 6-36 | 24 | 400 | 8.1 | 1500 | 15 | 6.4 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

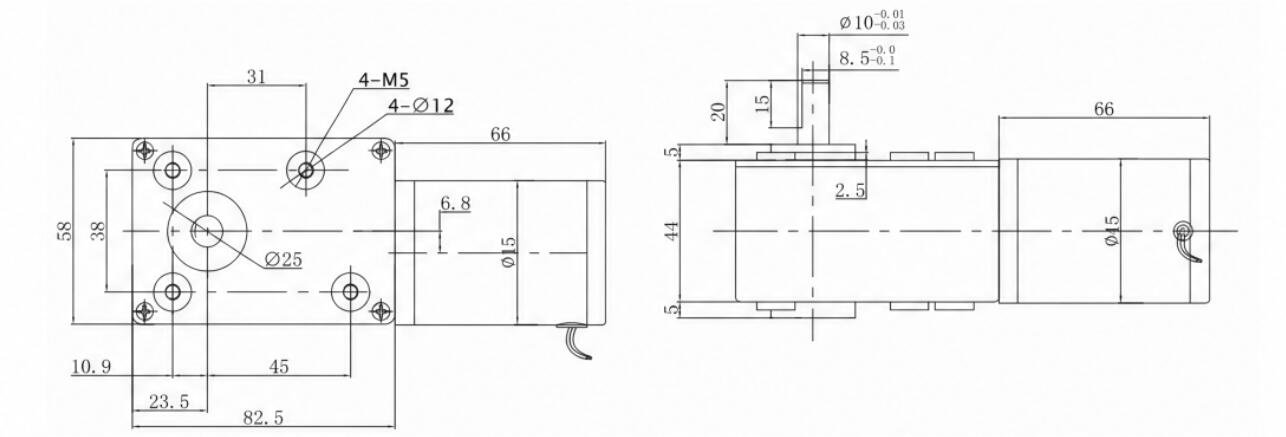

Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Output speed and loaded torque at the selected ratio
- Duty cycle, starts, reversing and load direction
- Shaft, mounting holes and gearbox length
- System supply and complete configuration code
