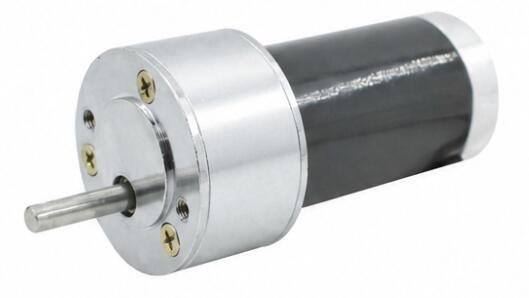

50GB38S Spur Gear Motor
The 50GB38S spur gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.
- Product type
- Spur Gear Motor
- Housing material
- Zinc alloy
- Nominal supply
- 12 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Specifications and Configuration References
- Housing material
- Zinc alloy
- Model
- TJP50RO
- Bearing
- Ball bearing
- Gear Modulus
- 0.7M
- Commutator
- Brushed
- Gear material
- 40Cr steel
- Max pressure force on shaft
- ≤15kgf
- Back lash
- ≤2°
- Brake available
- Yes
- Gear construction
- Spur gear
Construction and interface references
| Housing material | Zinc alloy | Encoder Optional | |

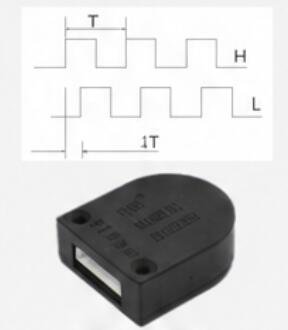

| Model | TJP50RO | A-B 2 channels D-Shape Encoder-5V 13PPR |
|
| Bearing | Ball bearing | ||
| Gear Modulus | 0.7M | ||
| Commutator | Brushed | ||
| Gear material | 40Cr steel | ||
| Max pressure force on shaft | ≤15kgf | ||
| Back lash | ≤2° | ||
| Brake available | Yes | ||
| Gear construction | Spur gear |
Published ratio-specific configurations
| DC MOTOR SPEED | Ratio | Gear Stages | Gearbox Size | Model Number | Voltage | No Load | On Load | |||||
| Operating Range | Rated Voltage | Current | Speed | Current | Torque | Speed | ||||||
| RPM | Dia | L | Min-Max V | V | mA | RPM | mA | N.m | RPM | |||
| 5000 | 15.5 | 3 | 50 | 24.3 | TJP50RO15.5i-12V-322.6R | 3.0-18.0 | 12 | 300 | 322.6 | 1000 | 0.21 | 258.1 |
| 5000 | 19 | 3 | 50 | 24.3 | TJP50RO19i-12V-263.2R | 3.0-18.0 | 12 | 300 | 263.2 | 1000 | 0.26 | 210.5 |
| 5000 | 23.9 | 3 | 50 | 24.3 | TJP50RO23.9i-12V-209.2R | 3.0-18.0 | 12 | 300 | 209.2 | 1000 | 0.32 | 167.4 |
| 5000 | 30.5 | 3 | 50 | 24.3 | TJP50RO30.5i-12V-163.9R | 3.0-18.0 | 12 | 300 | 163.9 | 1000 | 0.41 | 131.1 |
| 5000 | 44 | 4 | 50 | 28.3 | TJP50RO44i-12V-113.6R | 3.0-18.0 | 12 | 300 | 113.6 | 1000 | 0.54 | 90.9 |
| 5000 | 68 | 4 | 50 | 28.3 | TJP50RO68i-12V-73.5R | 3.0-18.0 | 12 | 300 | 73.5 | 1000 | 0.83 | 58.8 |
| 5000 | 86 | 4 | 50 | 28.3 | TJP50RO86i-12V-58.1R | 3.0-18.0 | 12 | 300 | 58.1 | 1000 | 1.05 | 46.5 |
| 5000 | 109 | 4 | 50 | 28.3 | TJP50RO109i-12V-45.9R | 3.0-18.0 | 12 | 300 | 45.9 | 1000 | 1.33 | 36.7 |
| 5000 | 134 | 4 | 50 | 28.3 | TJP50RO134i-12V-37.3R | 3.0-18.0 | 12 | 300 | 37.3 | 1000 | 1.64 | 29.9 |
| 5000 | 158 | 5 | 50 | 32.3 | TJP50RO158i-12V-31.6R | 3.0-18.0 | 12 | 300 | 31.6 | 1000 | 1.74 | 25.3 |
| 5000 | 199 | 5 | 50 | 32.3 | TJP50RO199i-12V-25.1R | 3.0-18.0 | 12 | 300 | 25.1 | 1000 | 2.19 | 20.1 |
| 5000 | 253 | 5 | 50 | 32.3 | TJP50RO253i-12V-19.8R | 3.0-18.0 | 12 | 300 | 19.8 | 1000 | 2.5 | 15.8 |
| 5000 | 311 | 5 | 50 | 32.3 | TJP50RO311i-12V-16.1R | 3.0-18.0 | 12 | 300 | 16.1 | 1000 | 2.5 | 12.9 |
| 5000 | 481 | 5 | 50 | 32.3 | TJP50RO481i-12V-10.4R | 3.0-18.0 | 12 | 300 | 10.4 | 1000 | 2.5 | 8.3 |
| 5000 | 567 | 6 | 50 | 35.8 | TJP50RO567i-12V-8.8R | 3.0-18.0 | 12 | 300 | 8.8 | 1000 | 2.5 | 7.1 |
| 5000 | 876 | 6 | 50 | 35.8 | TJP50RO876i-12V-5.7R | 3.0-18.0 | 12 | 300 | 5.7 | 1000 | 2.5 | 4.6 |
| 5000 | 1101 | 6 | 50 | 35.8 | TJP50RO1101i-12V-4.5R | 3.0-18.0 | 12 | 300 | 4.5 | 1000 | 2.5 | 3.6 |
| 5000 | 1401 | 6 | 50 | 35.8 | TJP50RO1401i-12V-3.6R | 3.0-18.0 | 12 | 300 | 3.6 | 1000 | 2.5 | 2.9 |
| 5000 | 1725 | 6 | 50 | 35.8 | TJP50RO1725i-12V-2.9R | 3.0-18.0 | 12 | 300 | 2.9 | 1000 | 2.5 | 2.3 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.
Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Output speed and loaded torque at the selected ratio
- Duty cycle, starts, reversing and load direction
- Shaft, mounting holes and gearbox length
- System supply and complete configuration code
