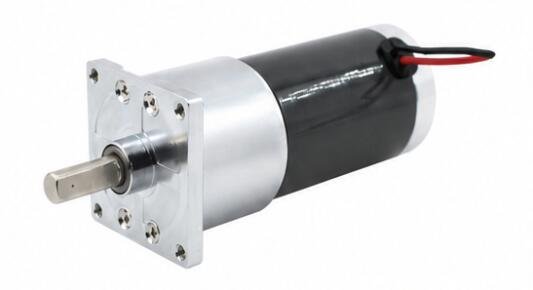

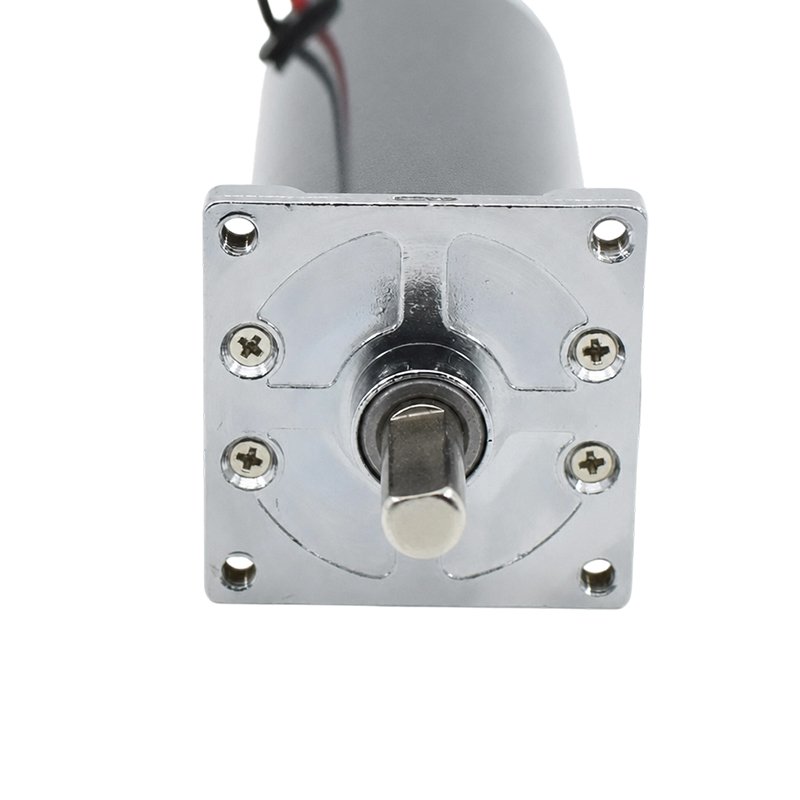

42GA38S Spur Gear Motor
The 42GA38S spur gear motor is a motor and gearbox assembly for OEM equipment. Compare the published ratio-specific configuration data and mechanical drawings, then confirm the loaded output speed, torque and mounting requirements for your project.
- Product type
- Spur Gear Motor
- Housing material
- Zinc alloy
- Nominal supply
- 24 V
Confirm the full model code, selected drawing and operating requirements for your OEM order.
Specifications and Configuration References
- Housing material
- Zinc alloy
- Model
- TJZ42FO
- Bearing
- Oil bearing
- Gear Modulus
- 0.7M
- Commutator
- Brushed
- Gear material
- 40Cr steel
- Max pressure force on shaft
- ≤15kgf
- Back lash
- ≤2°
- Brake available
- Yes
- Gear construction
- Spur gear
Construction and interface references
| Housing material | Zinc alloy | Encoder Optional | |
| Model | TJZ42FO | A-B 2 channels D-Shape Encoder-5V 13PPR |
|
| Bearing | Oil bearing | ||
| Gear Modulus | 0.7M | ||
| Commutator | Brushed | ||
| Gear material | 40Cr steel | ||
| Max pressure force on shaft | ≤15kgf | ||
| Back lash | ≤2° | ||
| Brake available | Yes | ||
| Gear construction | Spur gear |
Published ratio-specific configurations
| DC MOTOR SPEED | Ratio | Gear Stages | Gearbox Size | Model Number | Voltage | No Load | On Load | |||||
| Operating Range | Rated Voltage | Current | Speed | Current | Torque | Speed | ||||||
| RPM | Dia | L | Min-Max V | V | mA | RPM | mA | N.m | RPM | |||
| 6000 | 3.1 | 2 | 42 | 25.7 | TJZ42FO3.1i-24V-1935.5R | 6.0-36.0 | 24 | 180 | 1935.5 | 670 | 0.05 | 1548.4 |
| 6000 | 4.8 | 2 | 42 | 25.7 | TJZ42FO4.8i-24V-1250R | 6.0-36.0 | 24 | 180 | 1250 | 670 | 0.08 | 1000 |
| 6000 | 6.1 | 2 | 42 | 25.7 | TJZ42FO6.1i-24V-983.6R | 6.0-36.0 | 24 | 180 | 983.6 | 670 | 0.1 | 786.9 |
| 6000 | 8.3 | 3 | 42 | 25.7 | TJZ42FO8.3i-24V-722.9R | 6.0-36.0 | 24 | 180 | 722.9 | 670 | 0.13 | 578.3 |
| 6000 | 10.3 | 3 | 42 | 25.7 | TJZ42FO10.3i-24V-582.5R | 6.0-36.0 | 24 | 180 | 582.5 | 670 | 0.16 | 466 |
| 6000 | 12.8 | 3 | 42 | 25.7 | TJZ42FO12.8i-24V-468.8R | 6.0-36.0 | 24 | 180 | 468.8 | 670 | 0.19 | 375 |
| 6000 | 16.4 | 3 | 42 | 25.7 | TJZ42FO16.4i-24V-365.9R | 6.0-36.0 | 24 | 180 | 365.9 | 670 | 0.25 | 292.7 |
| 6000 | 18.2 | 4 | 42 | 25.7 | TJZ42FO18.2i-24V-329.7R | 6.0-36.0 | 24 | 180 | 329.7 | 670 | 0.25 | 263.7 |
| 6000 | 27.4 | 4 | 42 | 25.7 | TJZ42FO27.4i-24V-219R | 6.0-36.0 | 24 | 180 | 219 | 670 | 0.37 | 175.2 |
| 6000 | 24.2 | 4 | 42 | 25.7 | TJZ42FO24.2i-24V-175.4R | 6.0-36.0 | 24 | 180 | 175.4 | 670 | 0.47 | 140.4 |
| 6000 | 43.8 | 4 | 42 | 25.7 | TJZ42FO43.8i-24V-137R | 6.0-36.0 | 24 | 180 | 137 | 670 | 0.6 | 109.6 |
| 6000 | 59.3 | 5 | 42 | 29.5 | TJZ42FO59.3i-24V-101.2R | 6.0-36.0 | 24 | 180 | 101.2 | 670 | 0.73 | 80.9 |
| 6000 | 73 | 5 | 42 | 29.5 | TJZ42FO73i-24V-82.2R | 6.0-36.0 | 24 | 180 | 82.2 | 670 | 0.9 | 65.8 |
| 6000 | 91.2 | 5 | 42 | 29.5 | TJZ42FO91.2i-24V-65.8R | 6.0-36.0 | 24 | 180 | 65.8 | 670 | 1.12 | 52.6 |
| 6000 | 120 | 5 | 42 | 29.5 | TJZ42FO120i-24V-50R | 6.0-36.0 | 24 | 180 | 50 | 670 | 1.47 | 40 |
| 6000 | 158 | 6 | 42 | 32.7 | TJZ42FO158i-24V-38R | 6.0-36.0 | 24 | 180 | 38 | 670 | 1.75 | 30.4 |
| 6000 | 195 | 6 | 42 | 32.7 | TJZ42FO195i-24V-30.8R | 6.0-36.0 | 24 | 180 | 30.8 | 670 | 2.16 | 24.6 |
| 6000 | 243 | 6 | 42 | 32.7 | TJZ42FO243i-24V-24.7R | 6.0-36.0 | 24 | 180 | 24.7 | 670 | 2.5 | 19.8 |
| 6000 | 323 | 6 | 42 | 32.7 | TJZ42FO323i-24V-18.6R | 6.0-36.0 | 24 | 180 | 18.6 | 670 | 2.5 | 14.9 |
Data is configuration-specific. Confirm the selected winding or gear ratio, test supply, loaded working point and drawing revision before ordering. Maximum-efficiency or stall values are separate reference conditions.

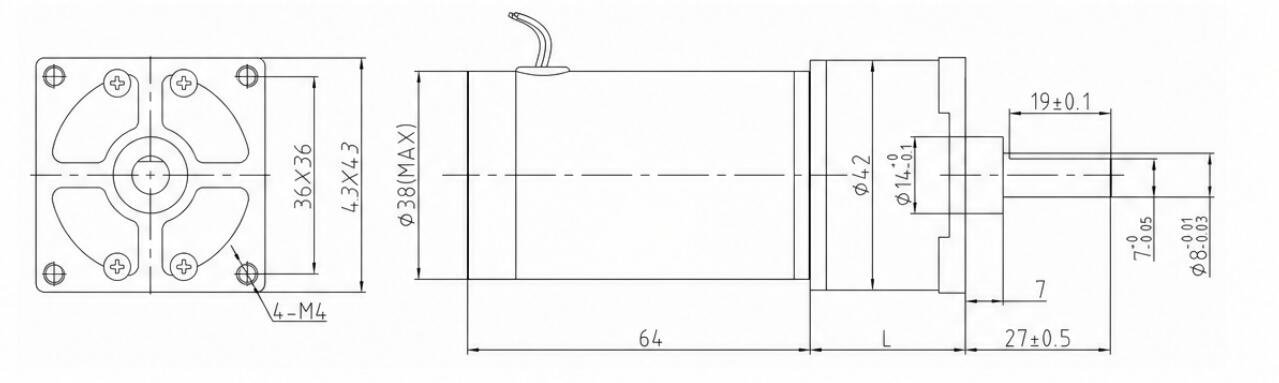

Dimensions and Technical Drawings
Match the Configuration to Your Equipment
A model name is the starting point. Share the operating conditions and drawing so the electrical and mechanical configuration can be reviewed together.
- Output speed and loaded torque at the selected ratio
- Duty cycle, starts, reversing and load direction
- Shaft, mounting holes and gearbox length
- System supply and complete configuration code
